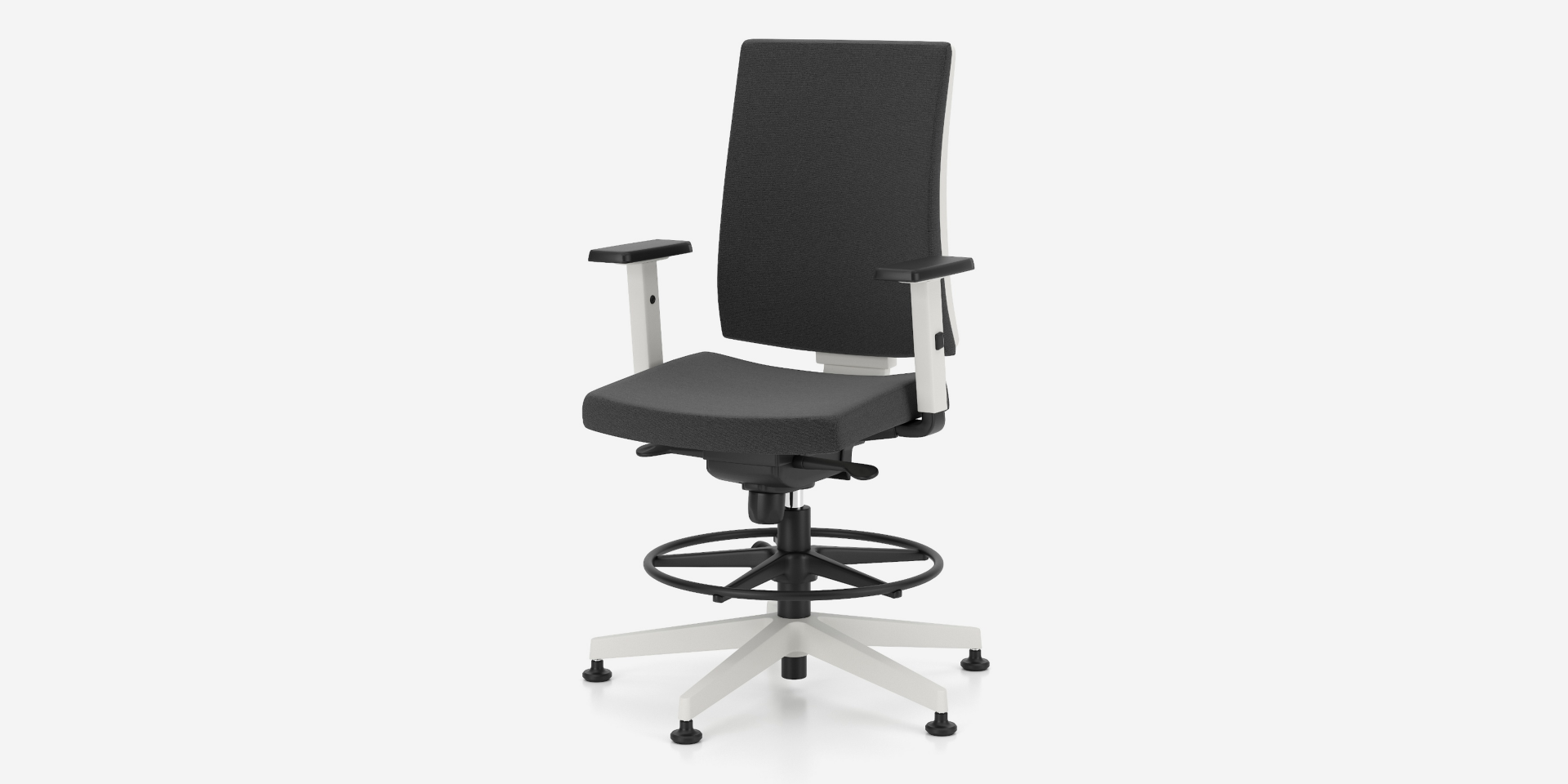

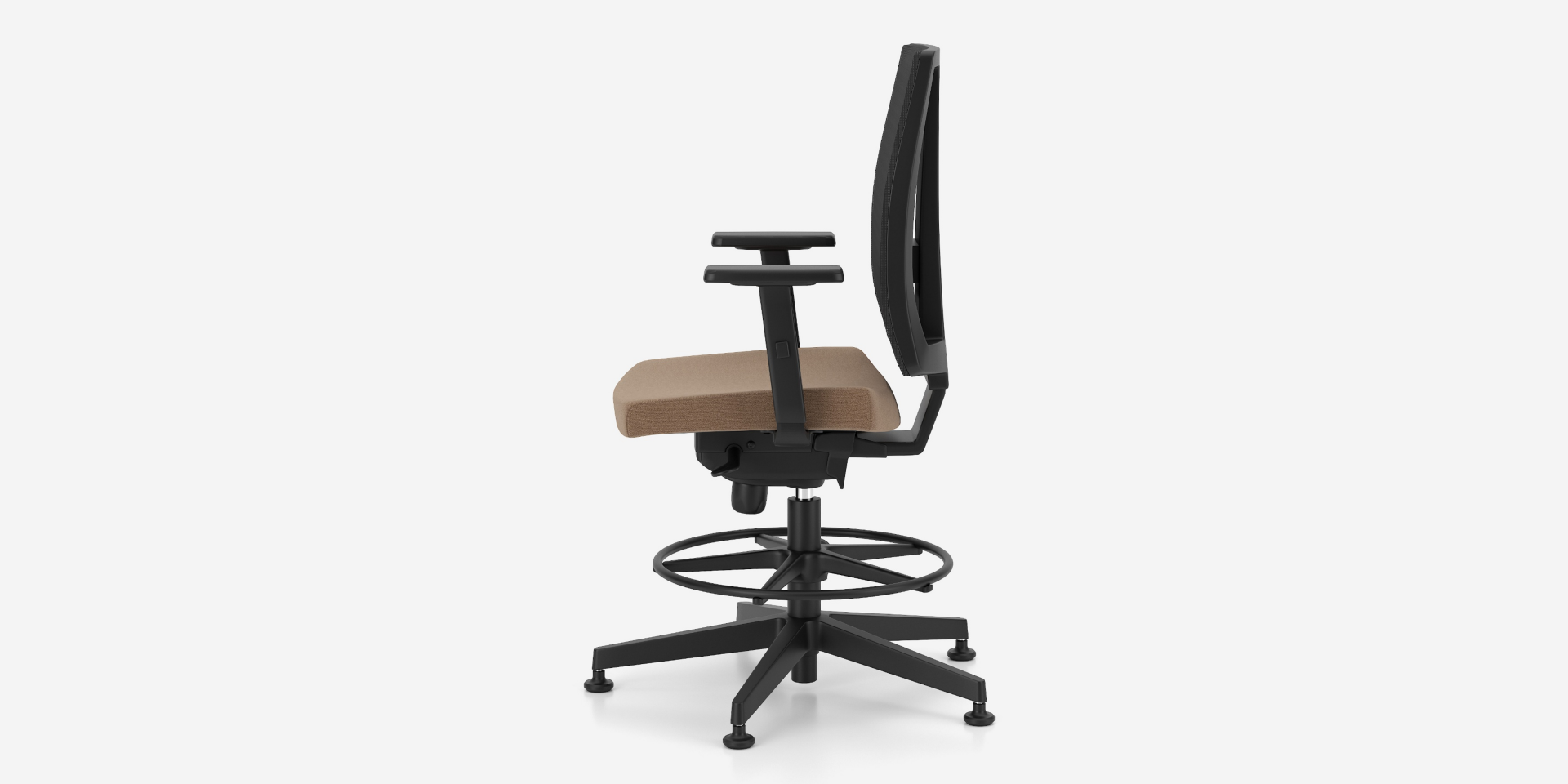

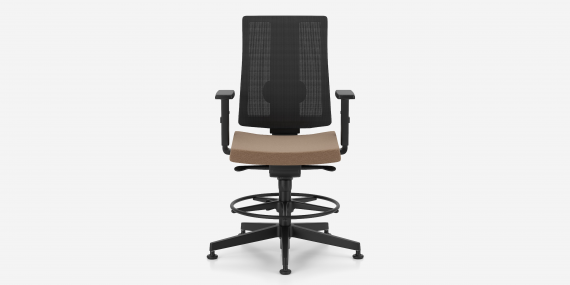

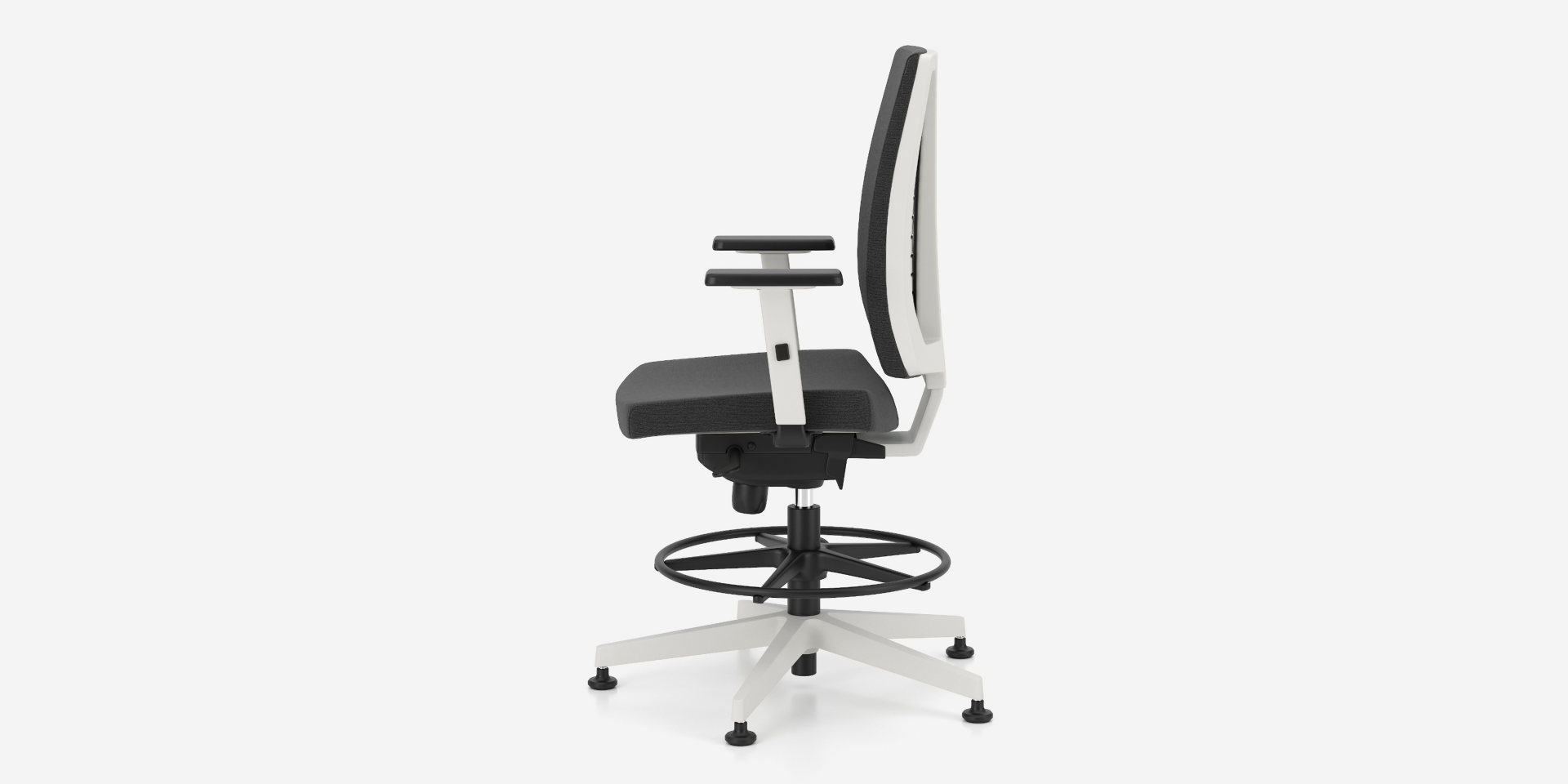

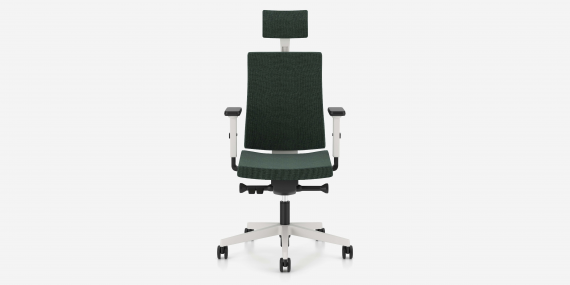

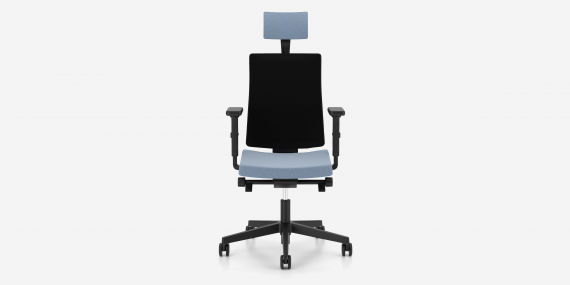

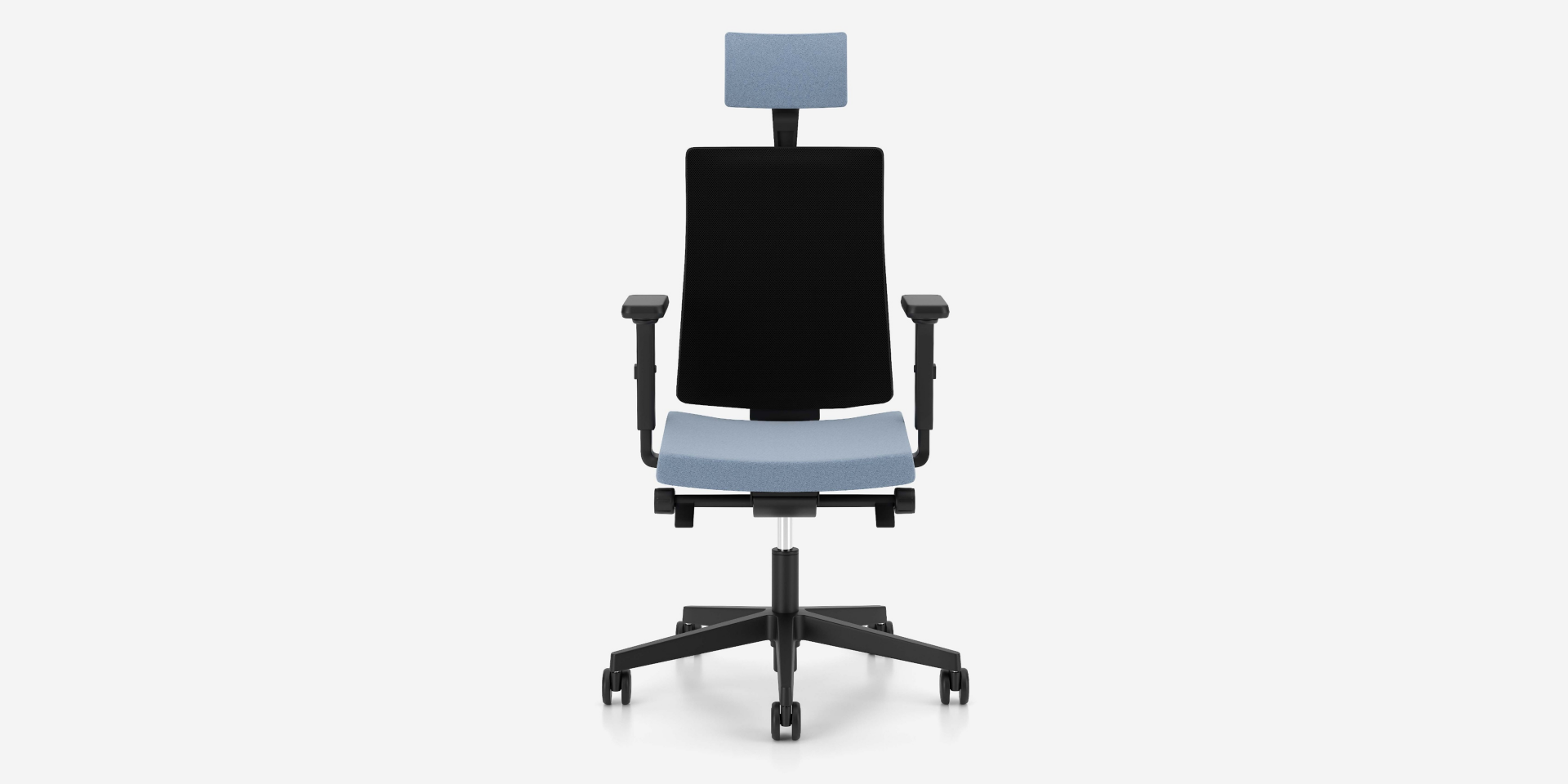

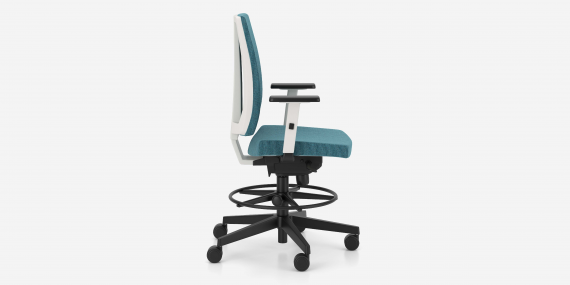

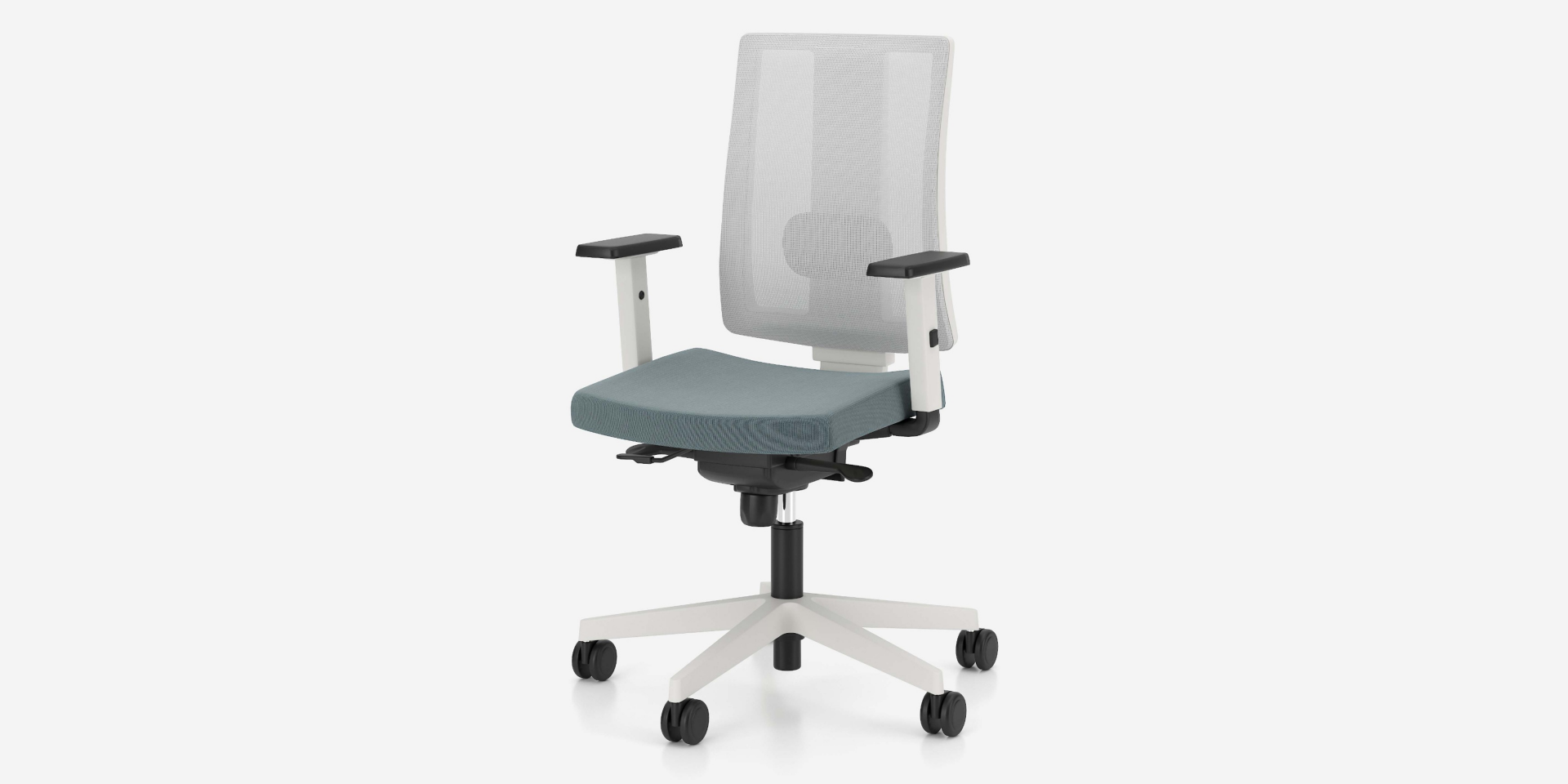

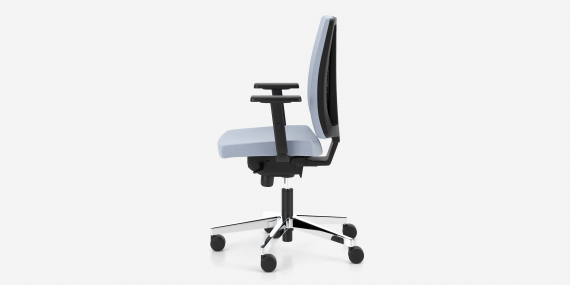

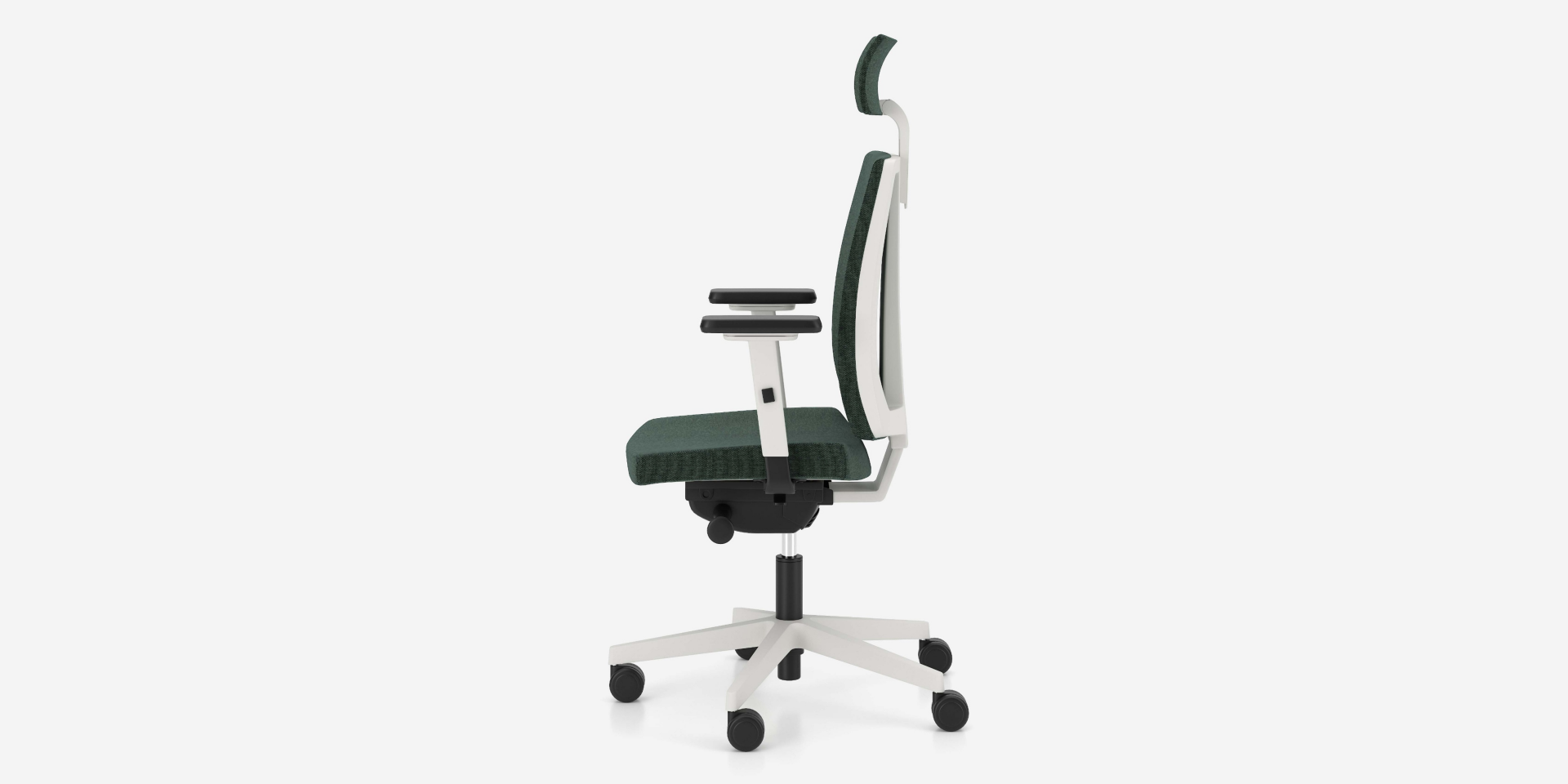

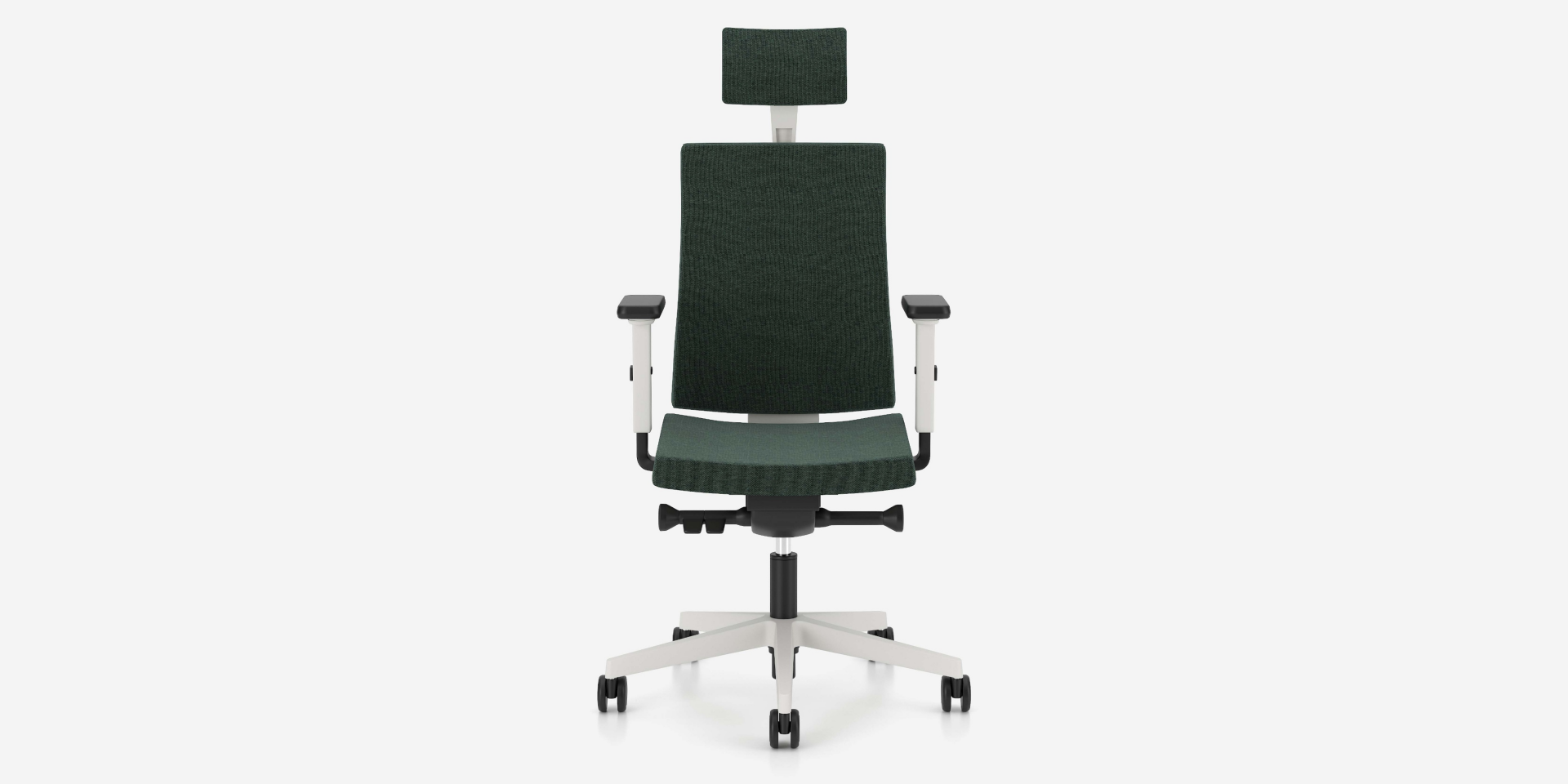

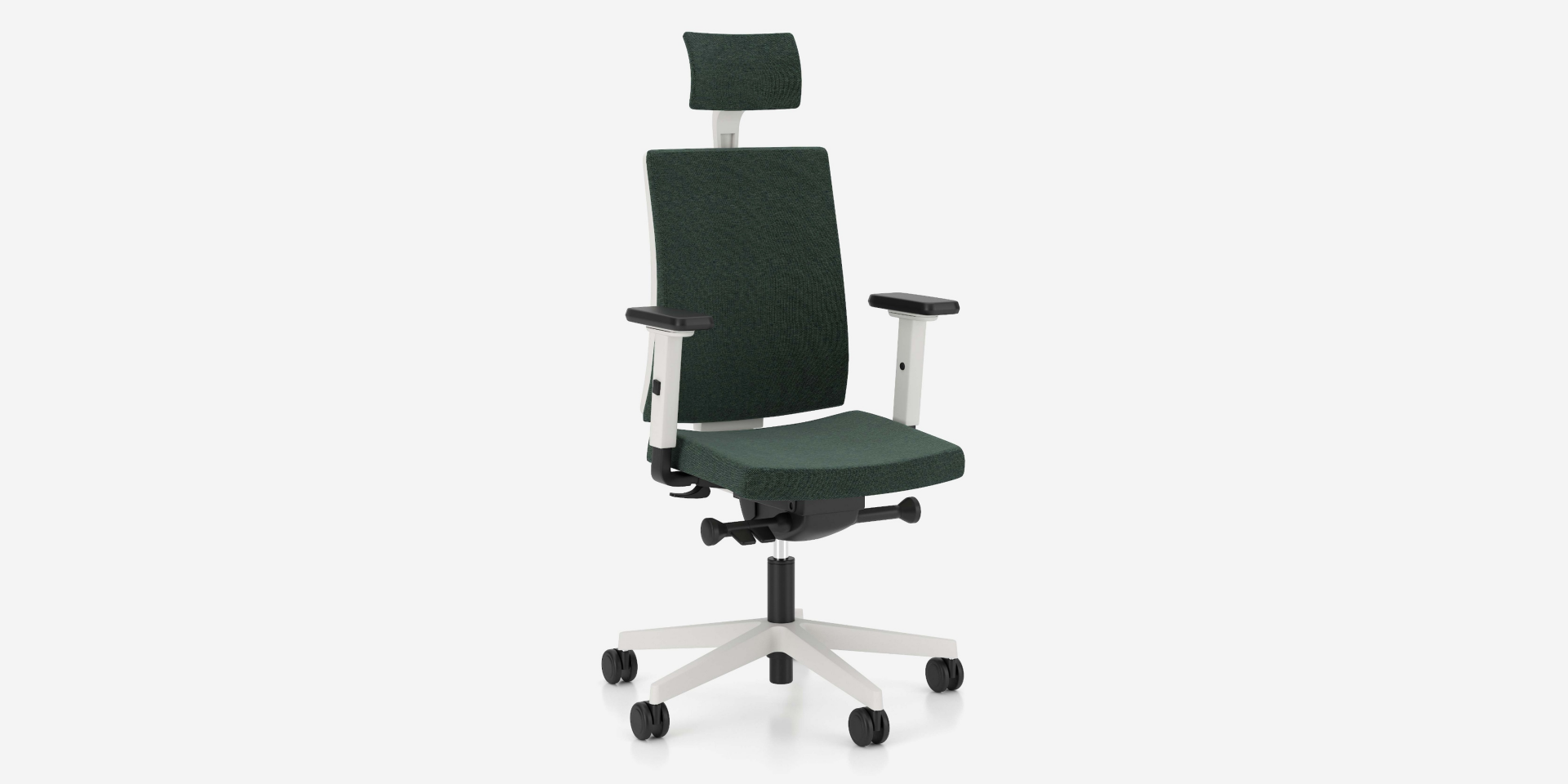

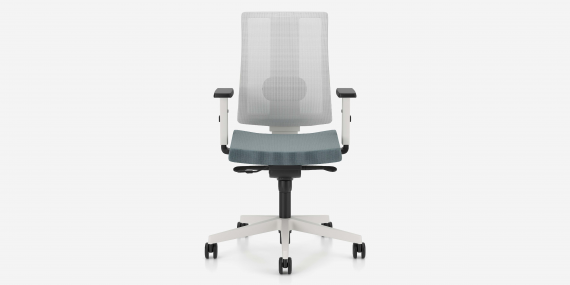

Navigo a product from Nowy Styl

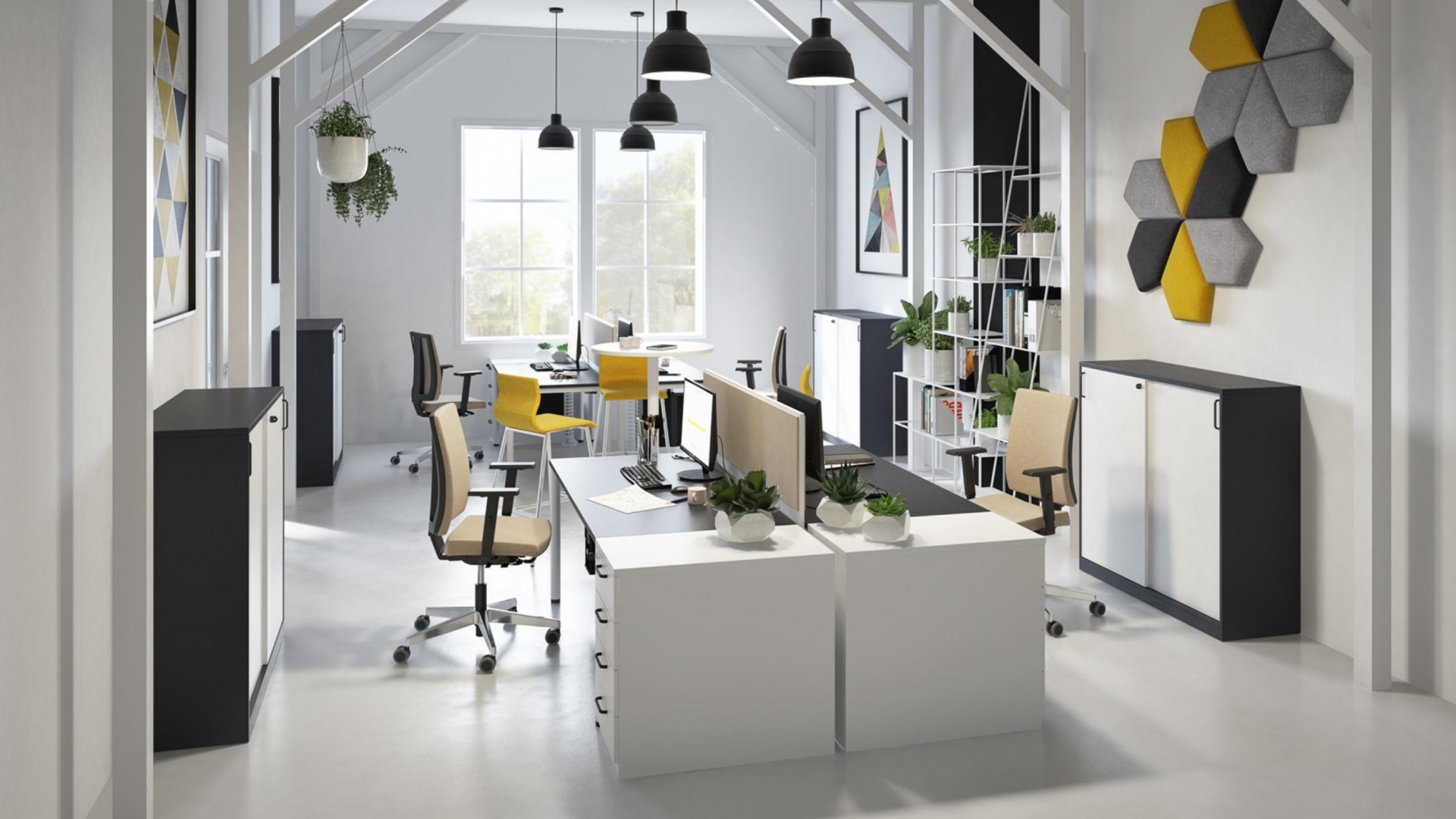

A functional and properly adjusted chair is the basis of office ergonomics. Navigo is an ideal solution for modern office spaces.

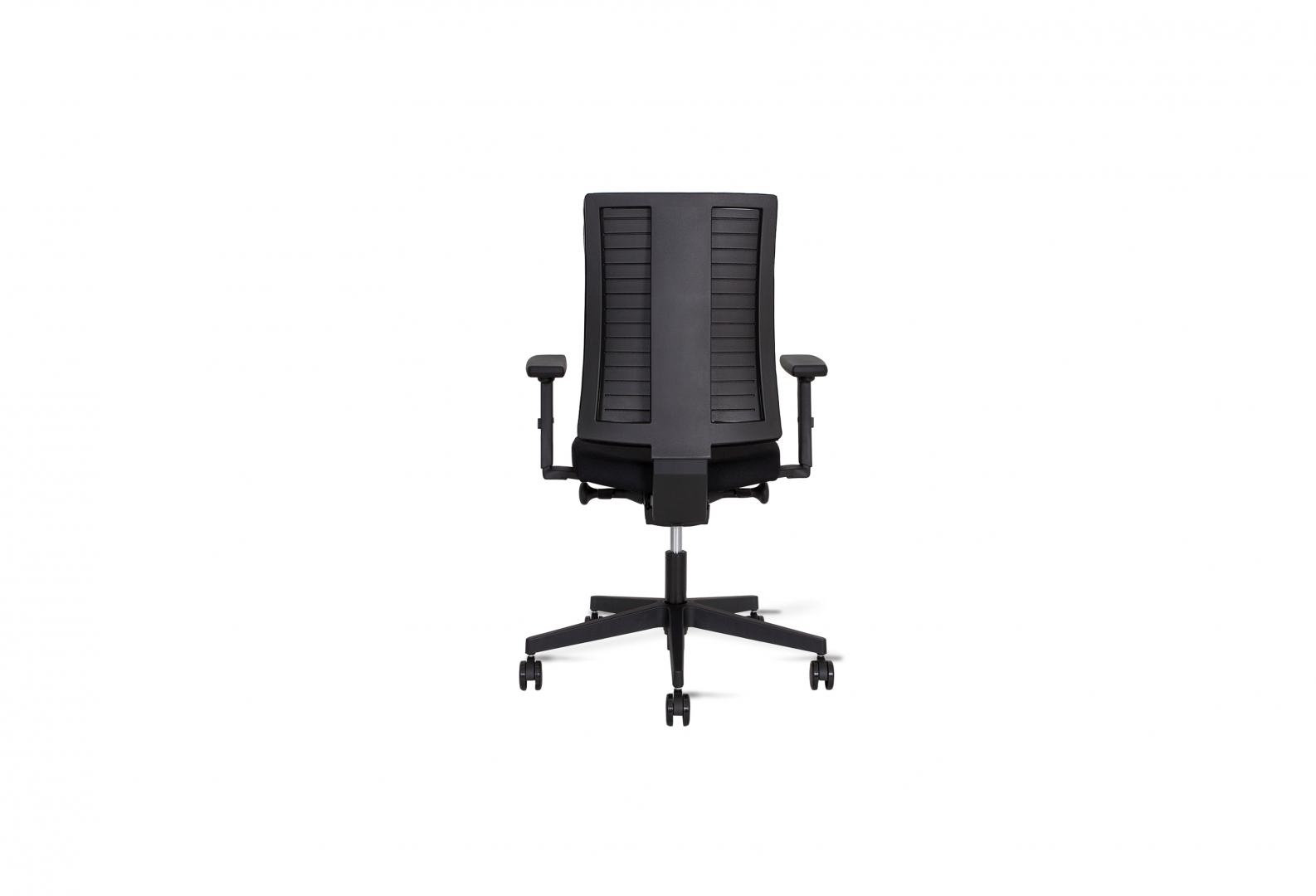

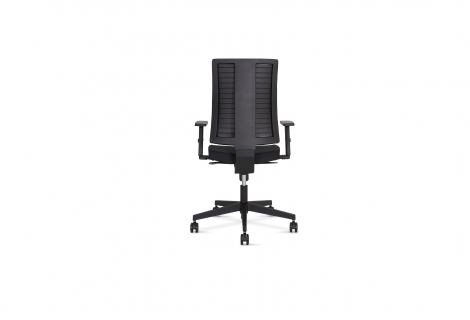

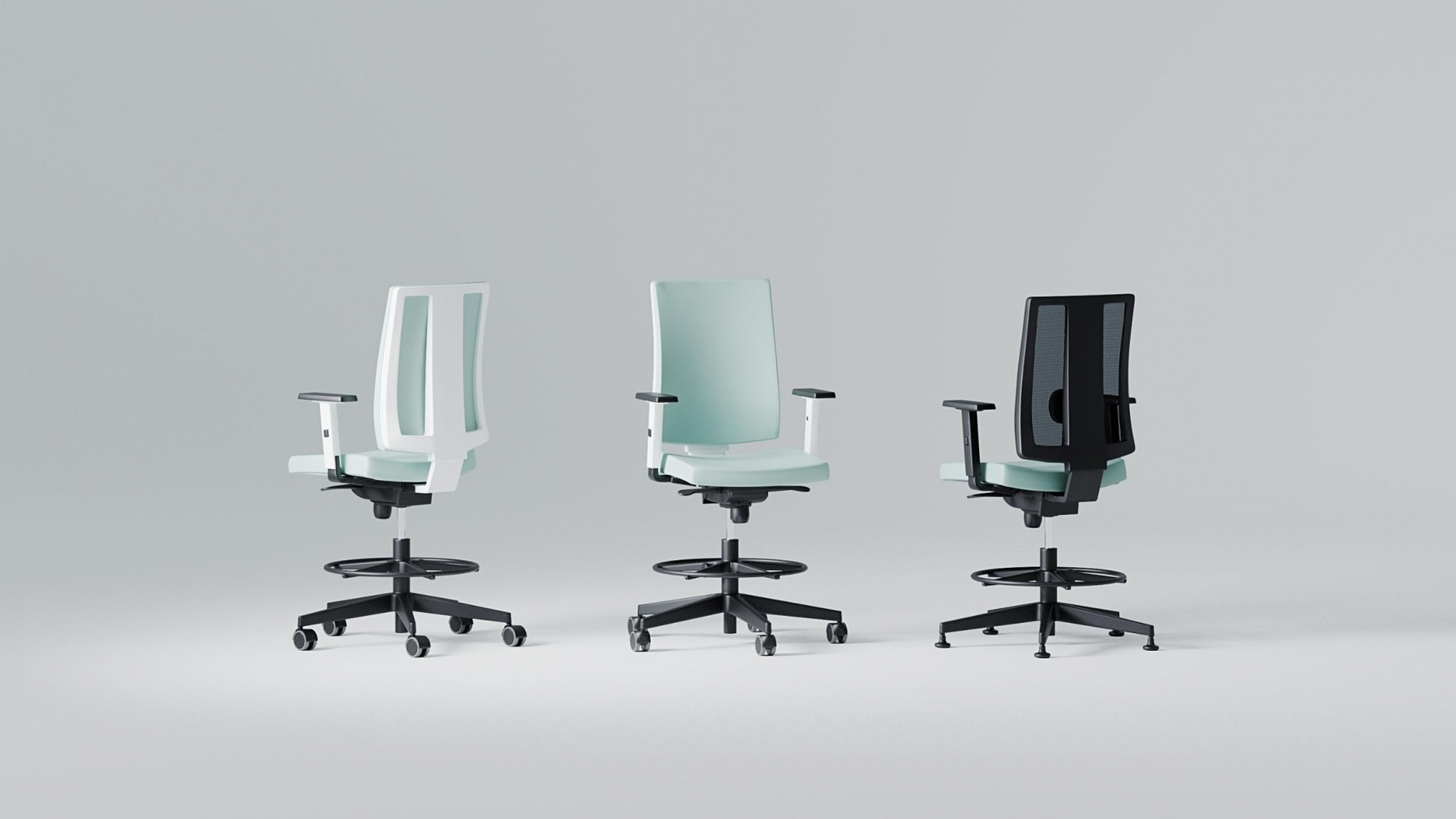

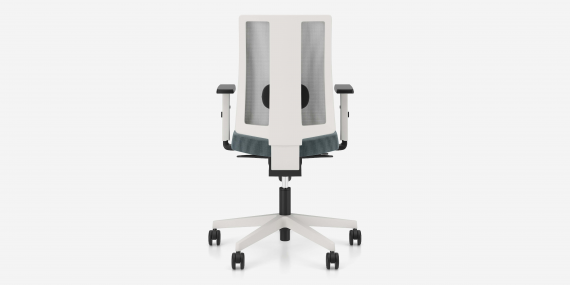

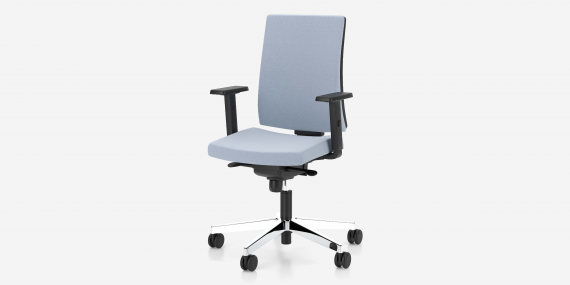

There are three different versions of upholstered backrest available

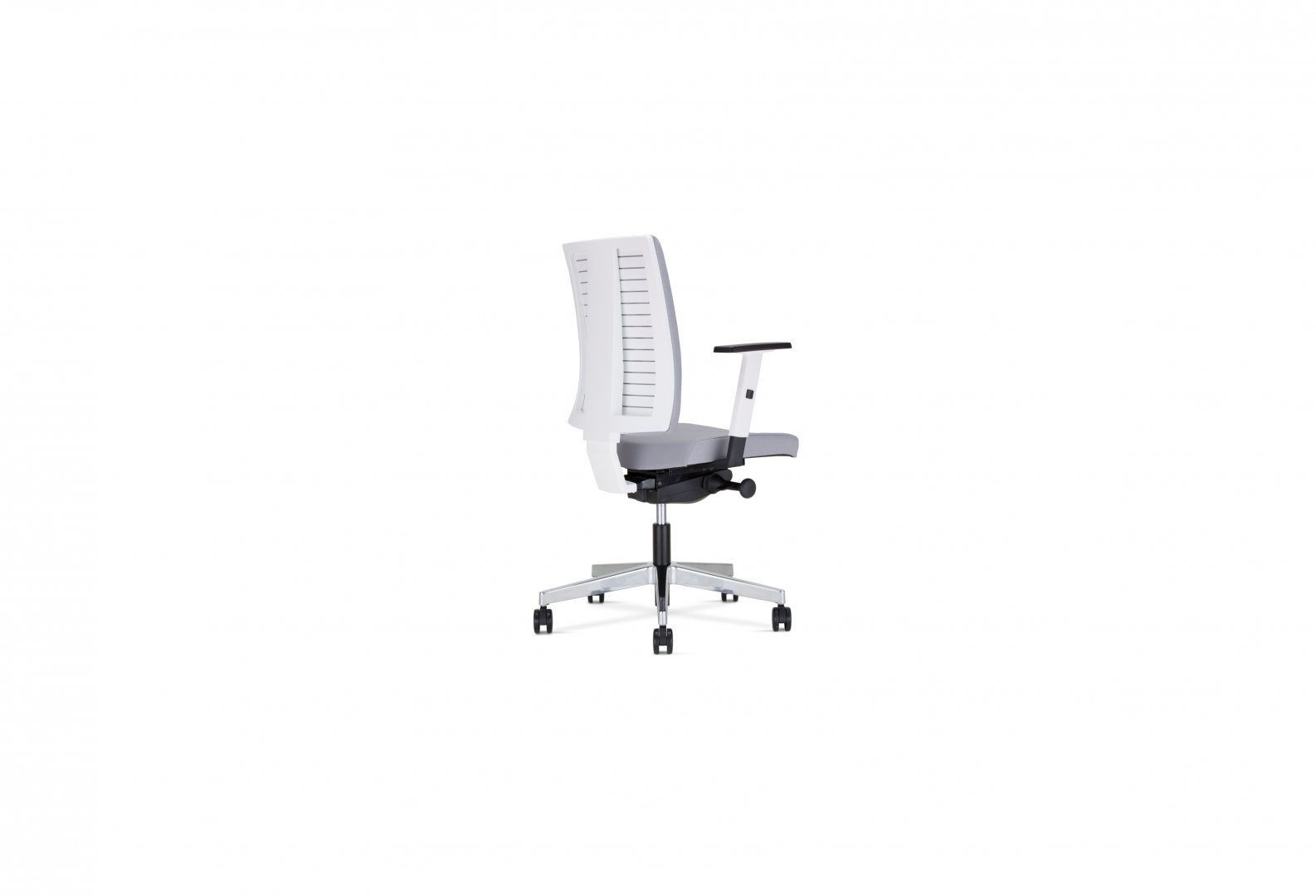

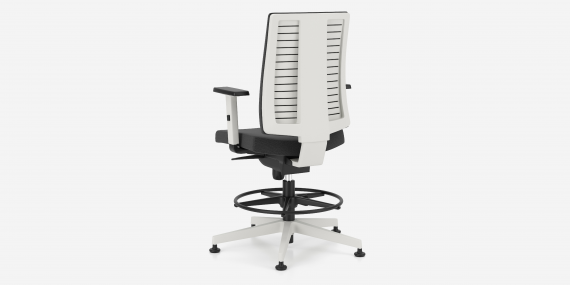

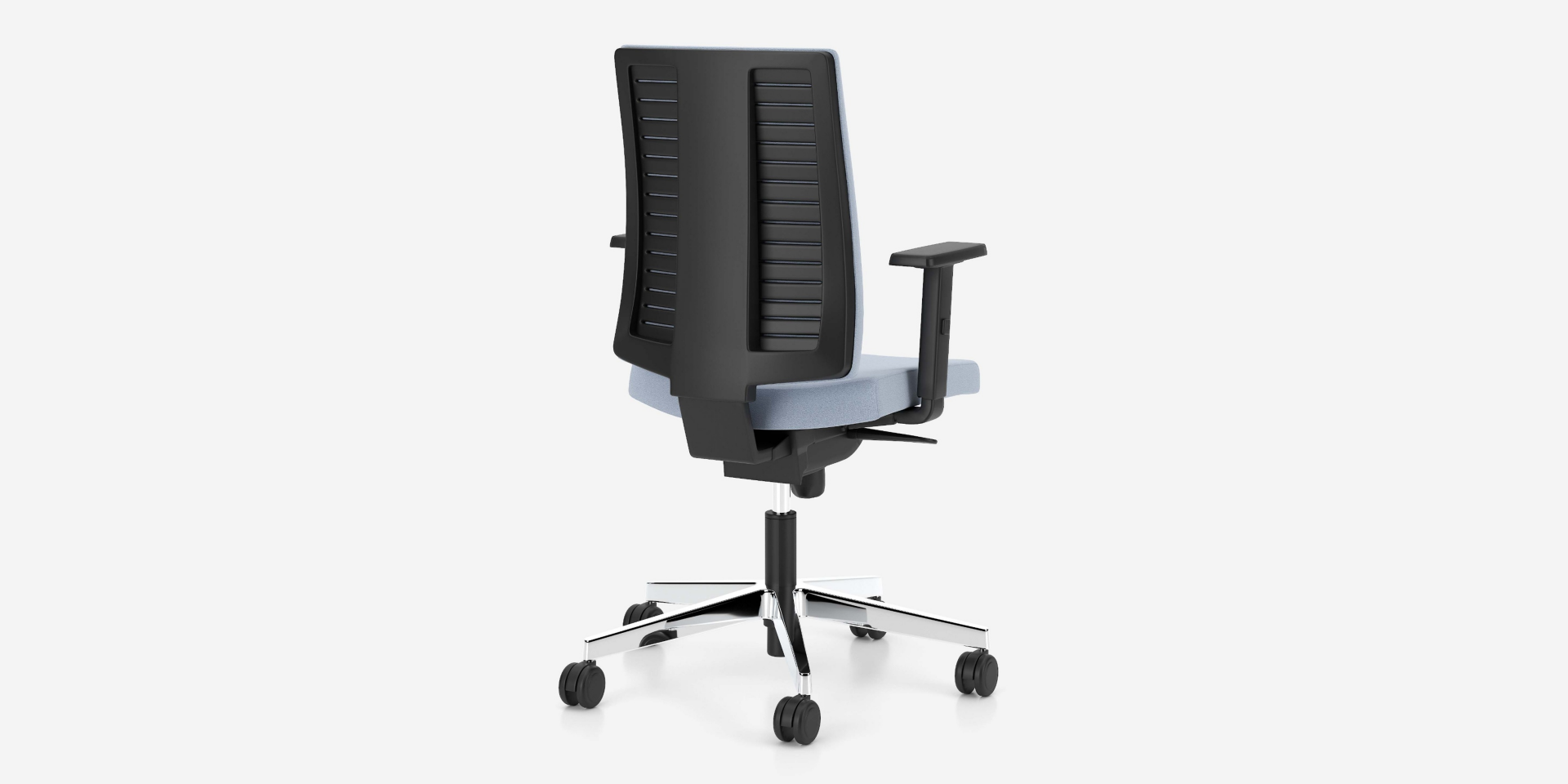

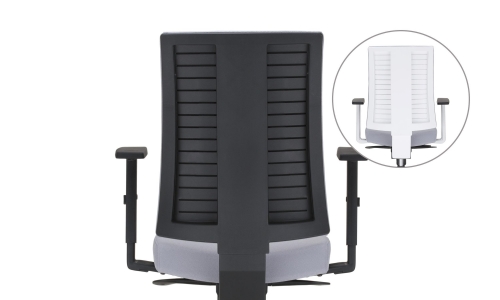

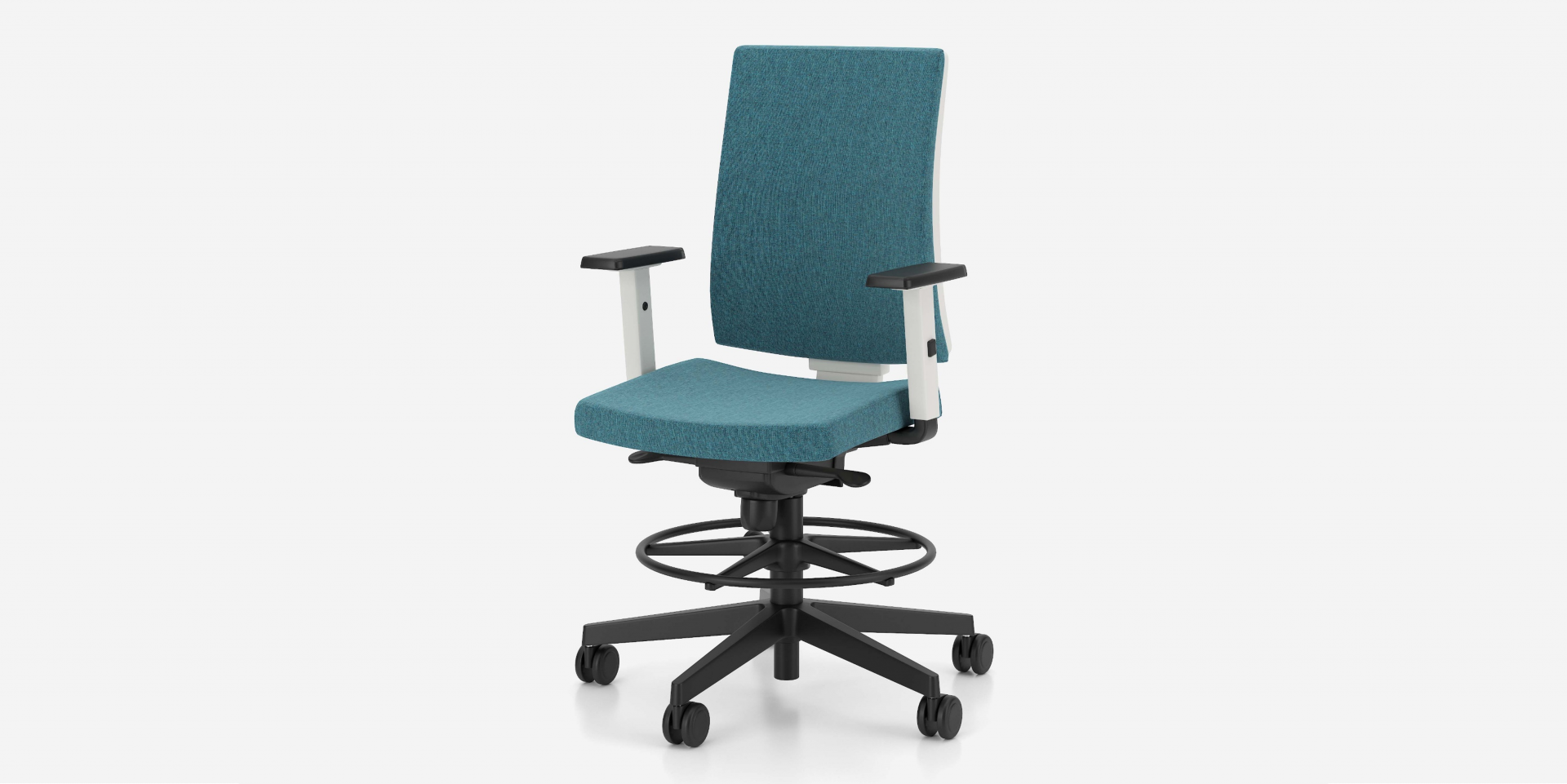

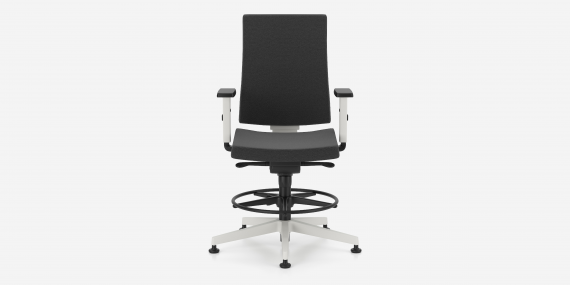

BASIC: a full plastic cover

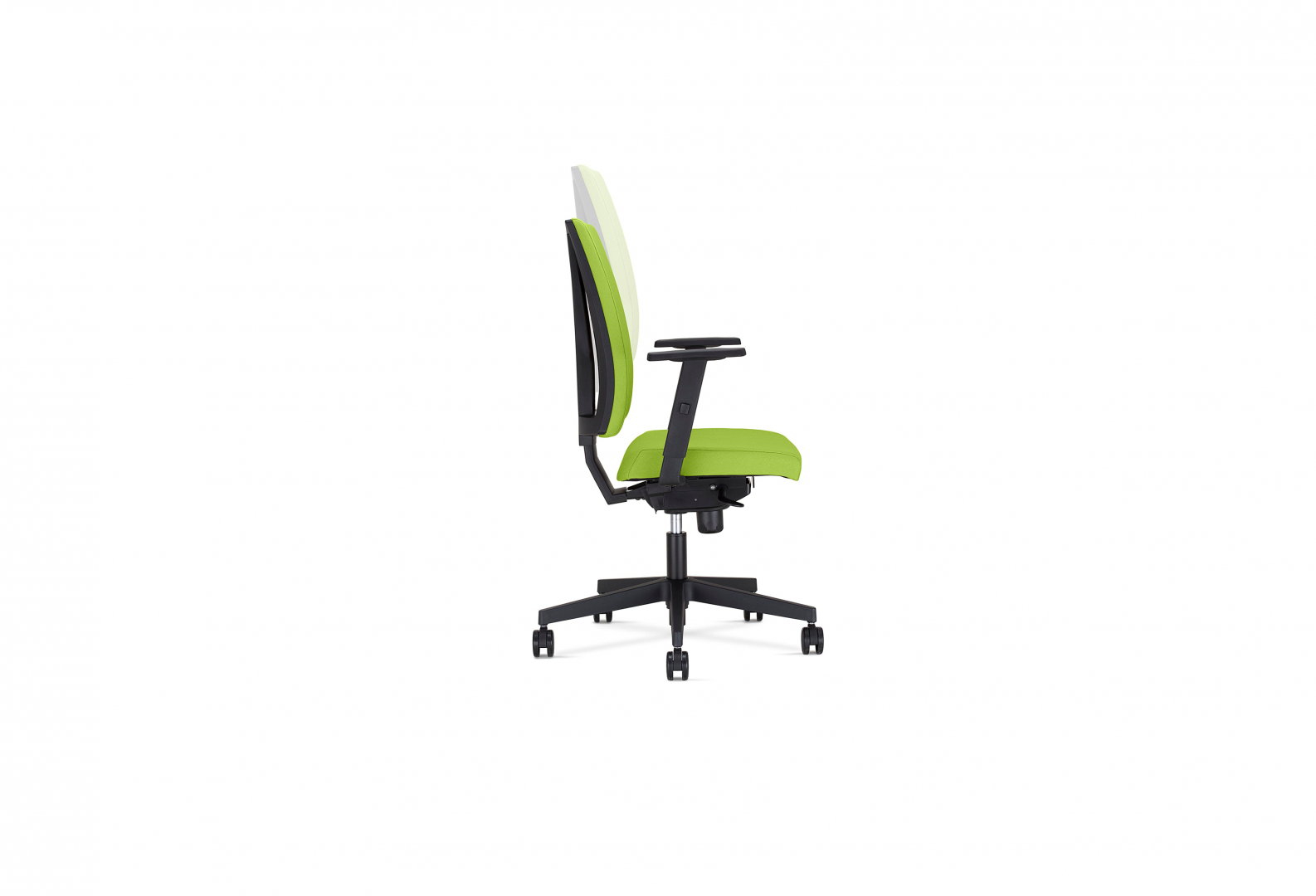

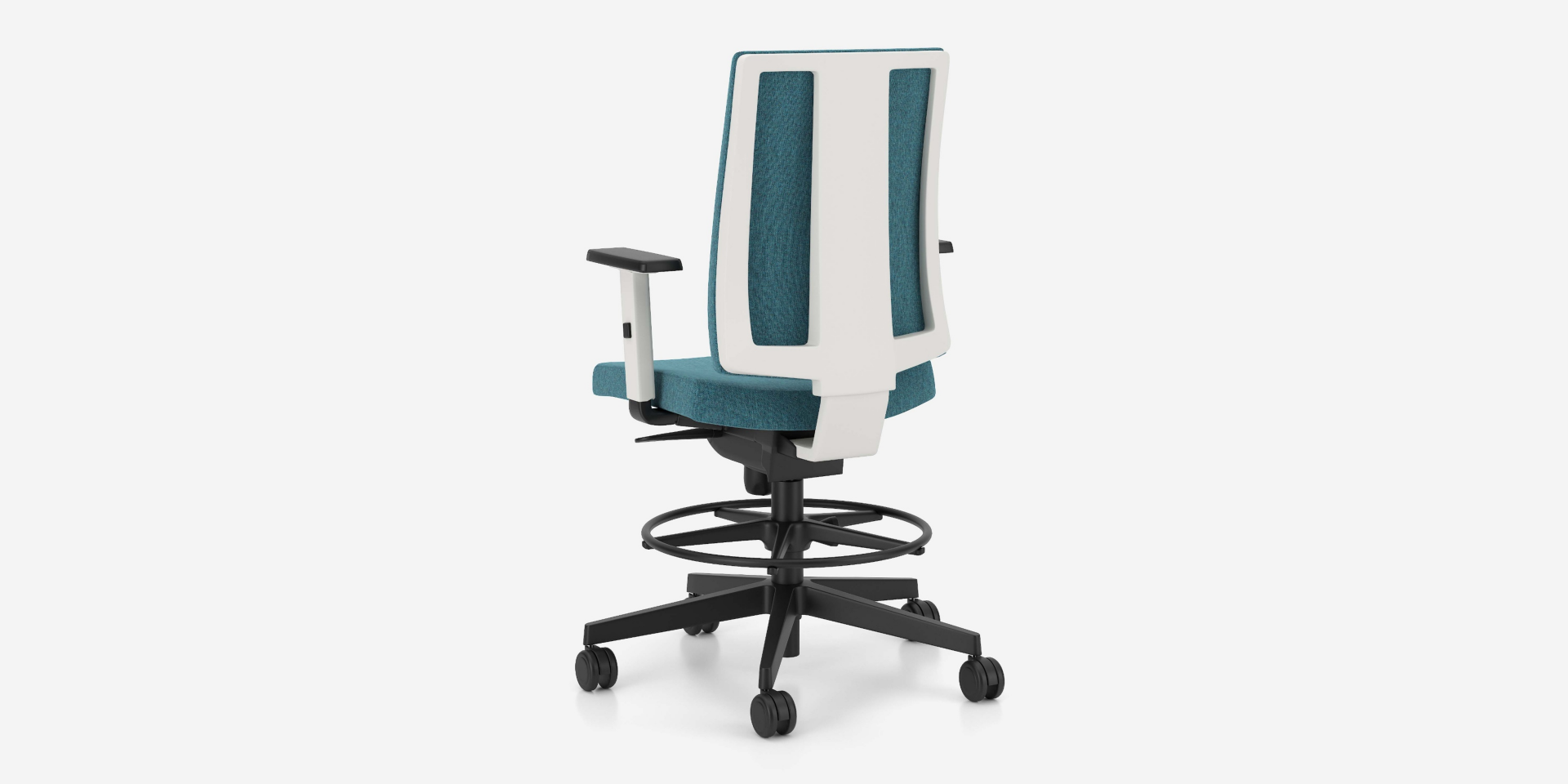

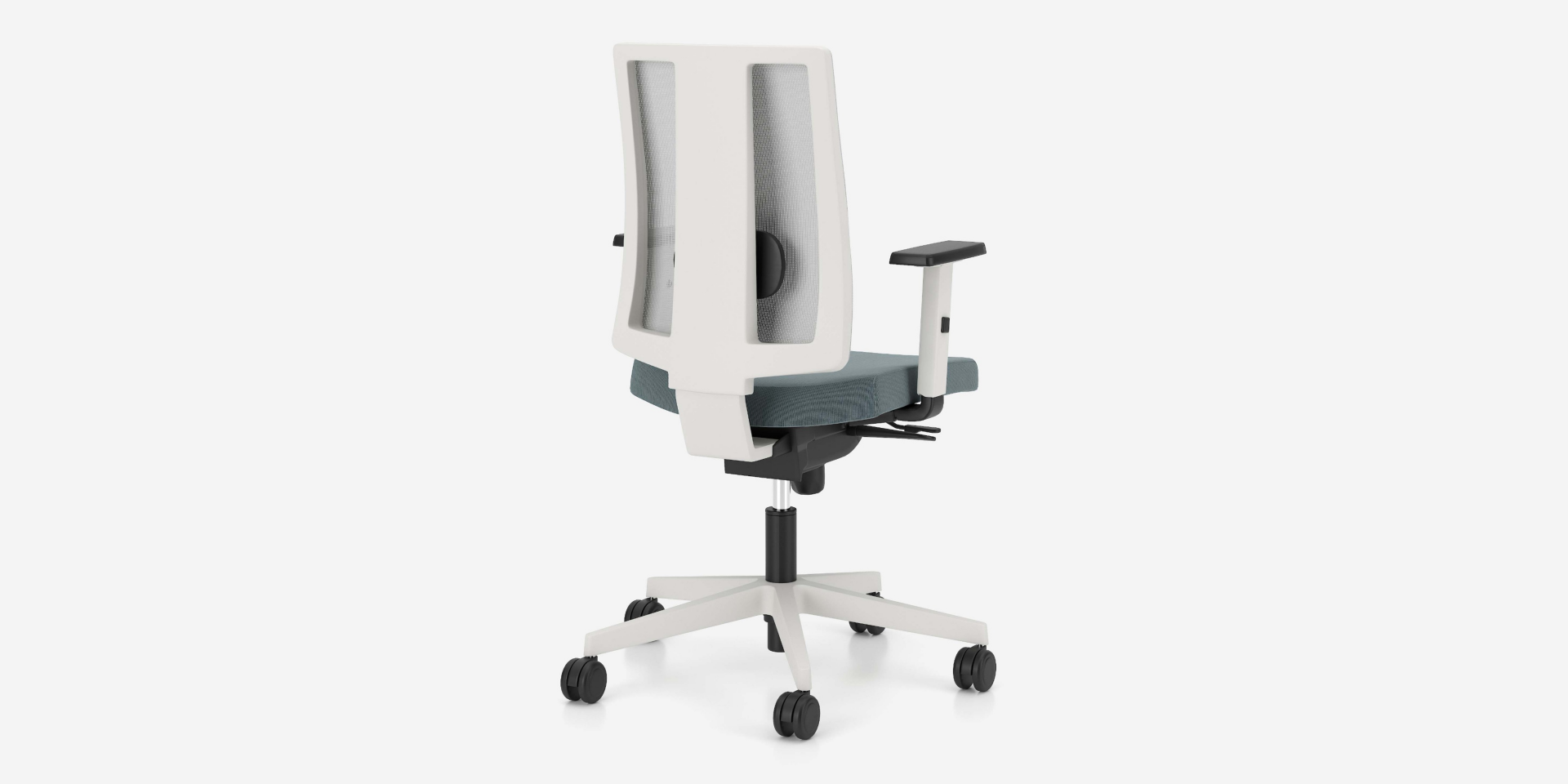

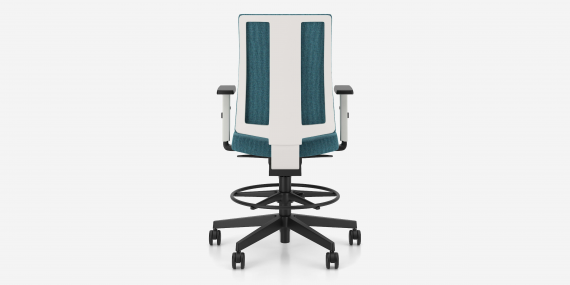

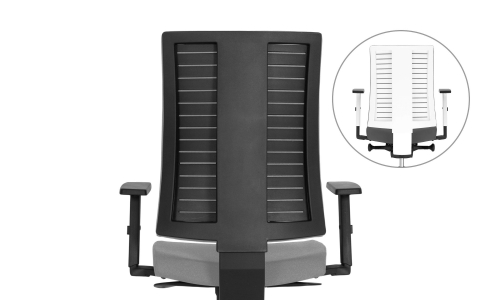

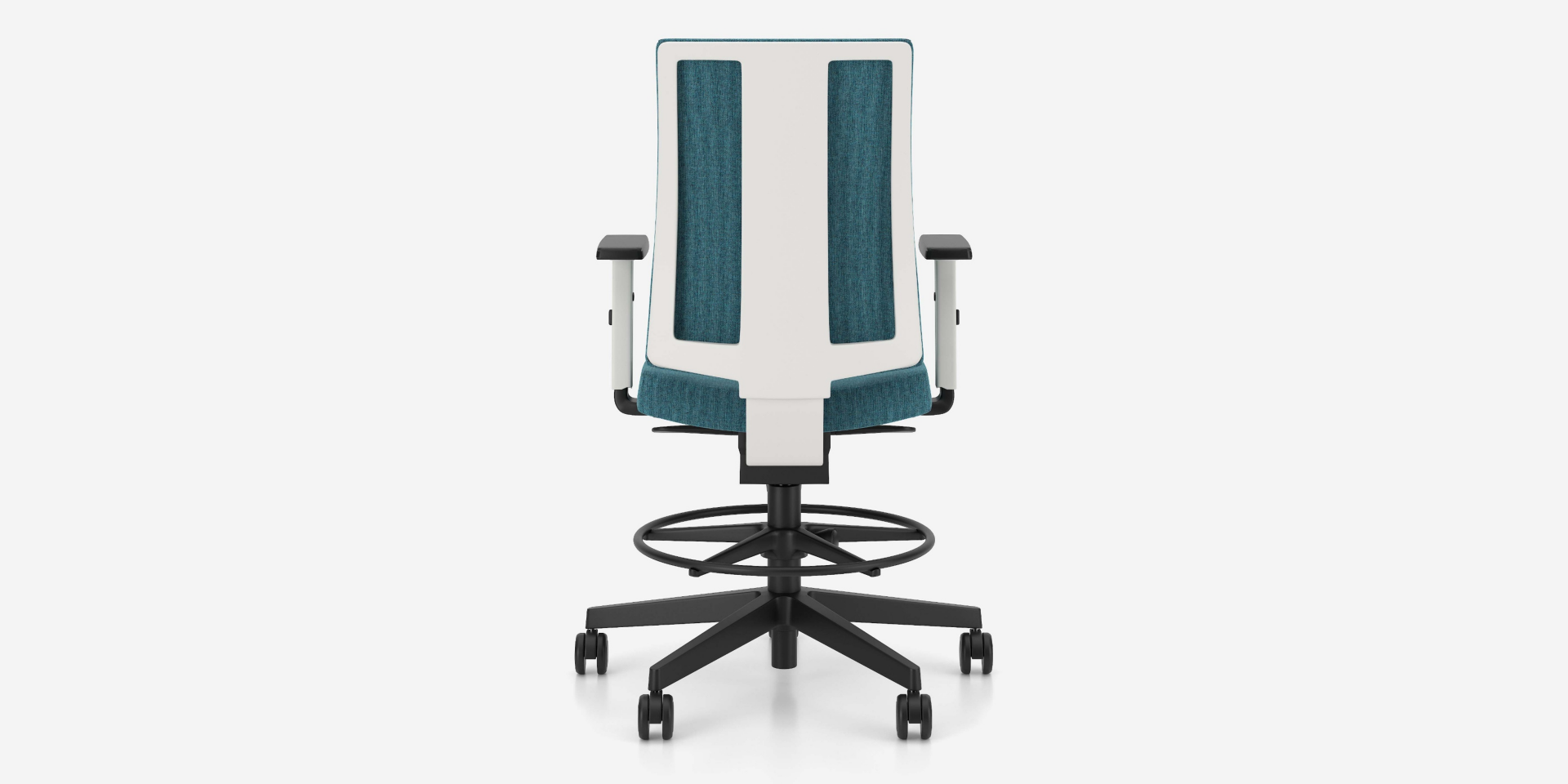

INSERT: a plastic cover, through which the upholstery colour is visible

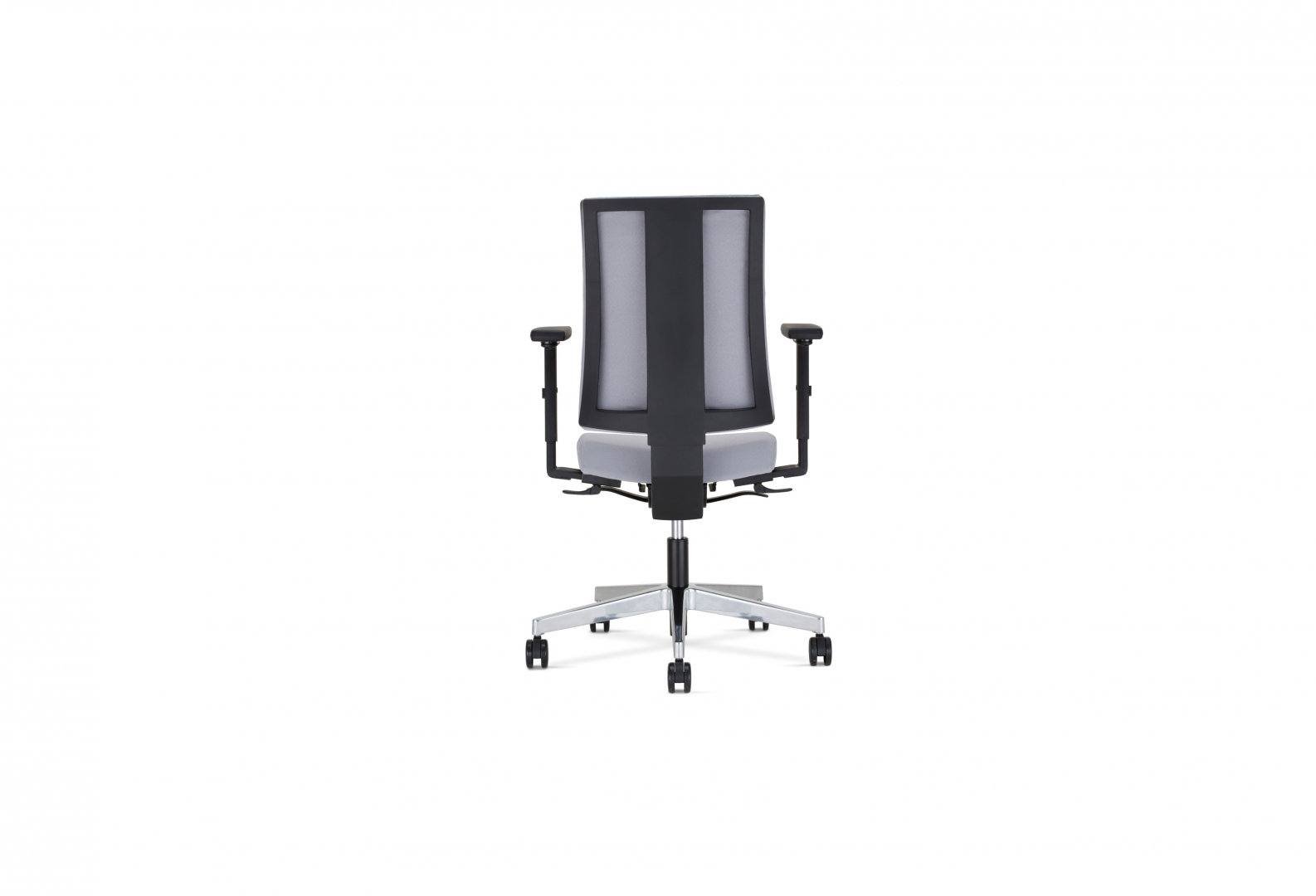

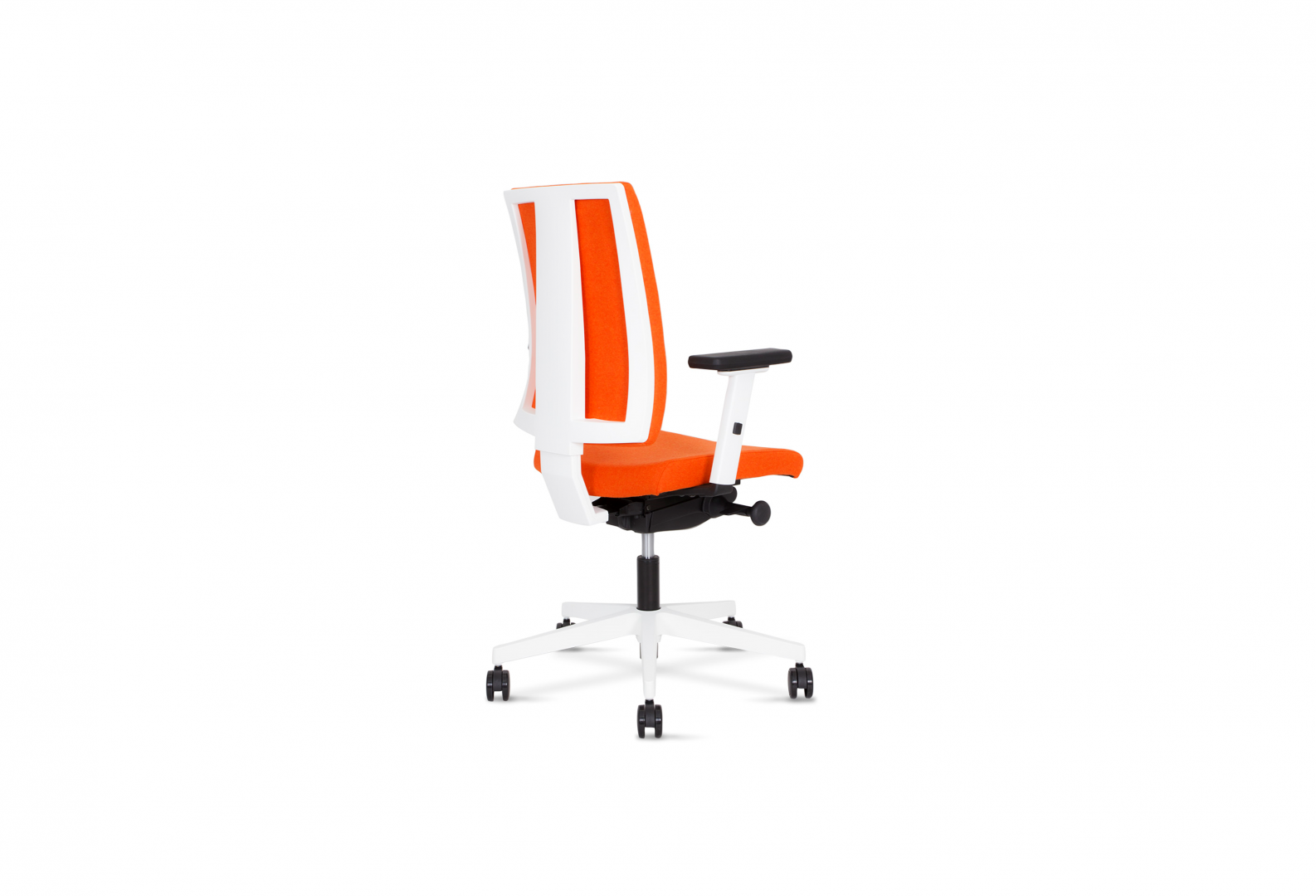

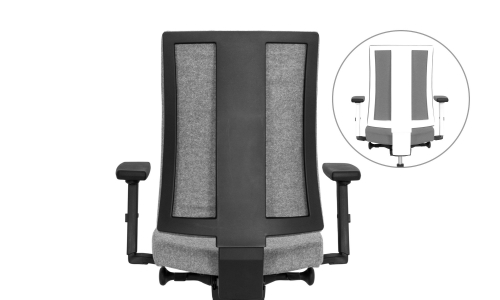

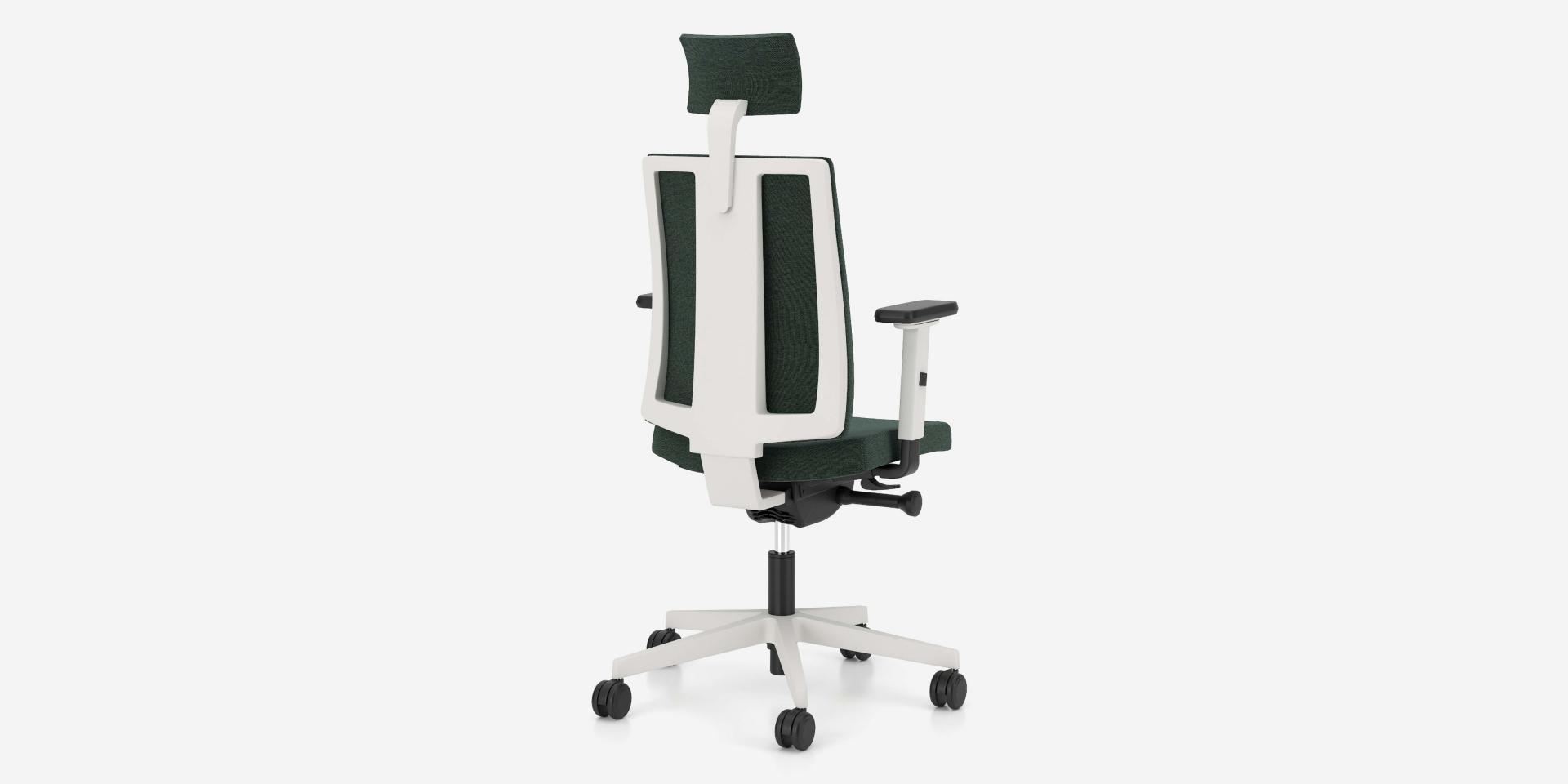

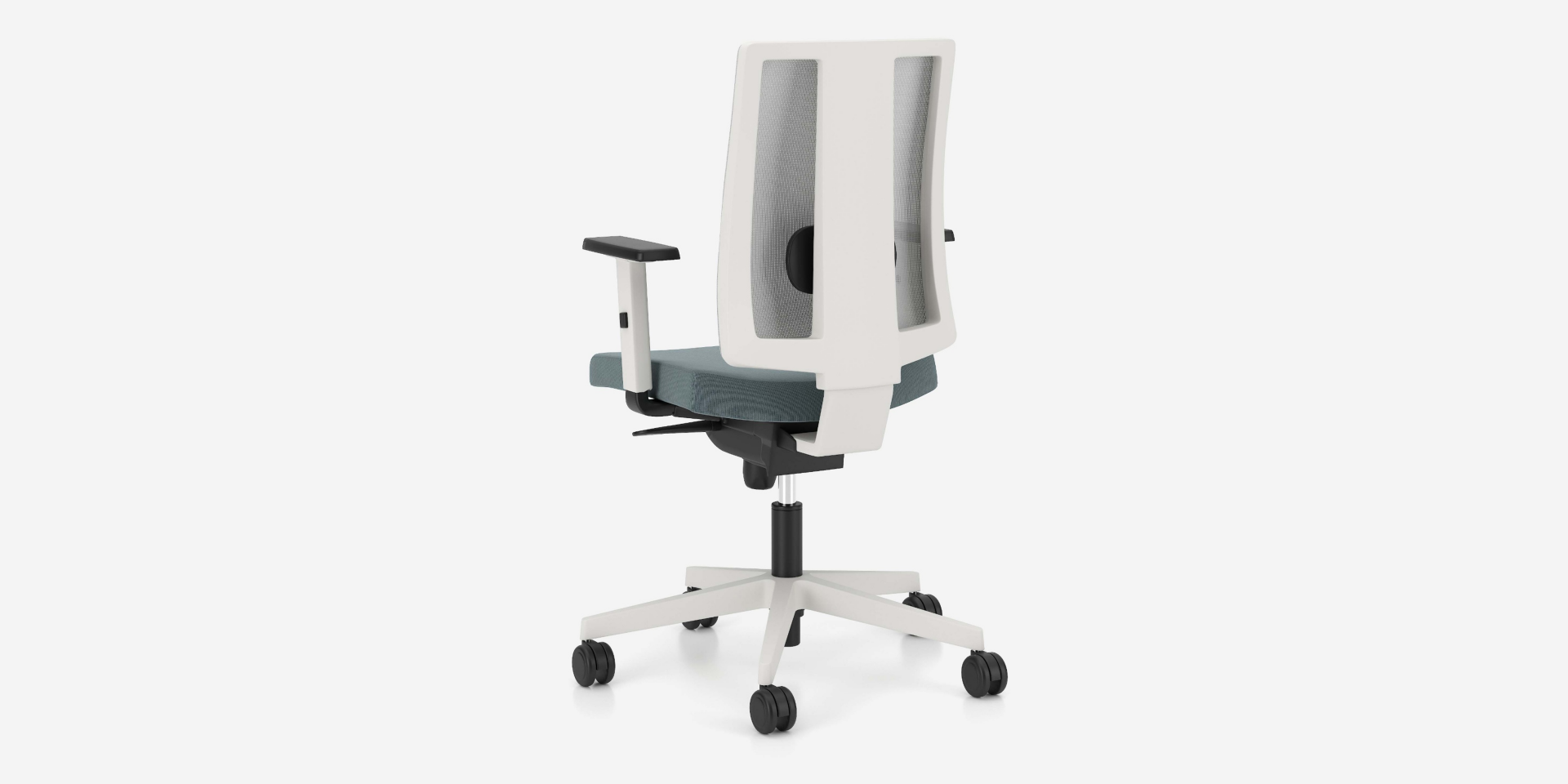

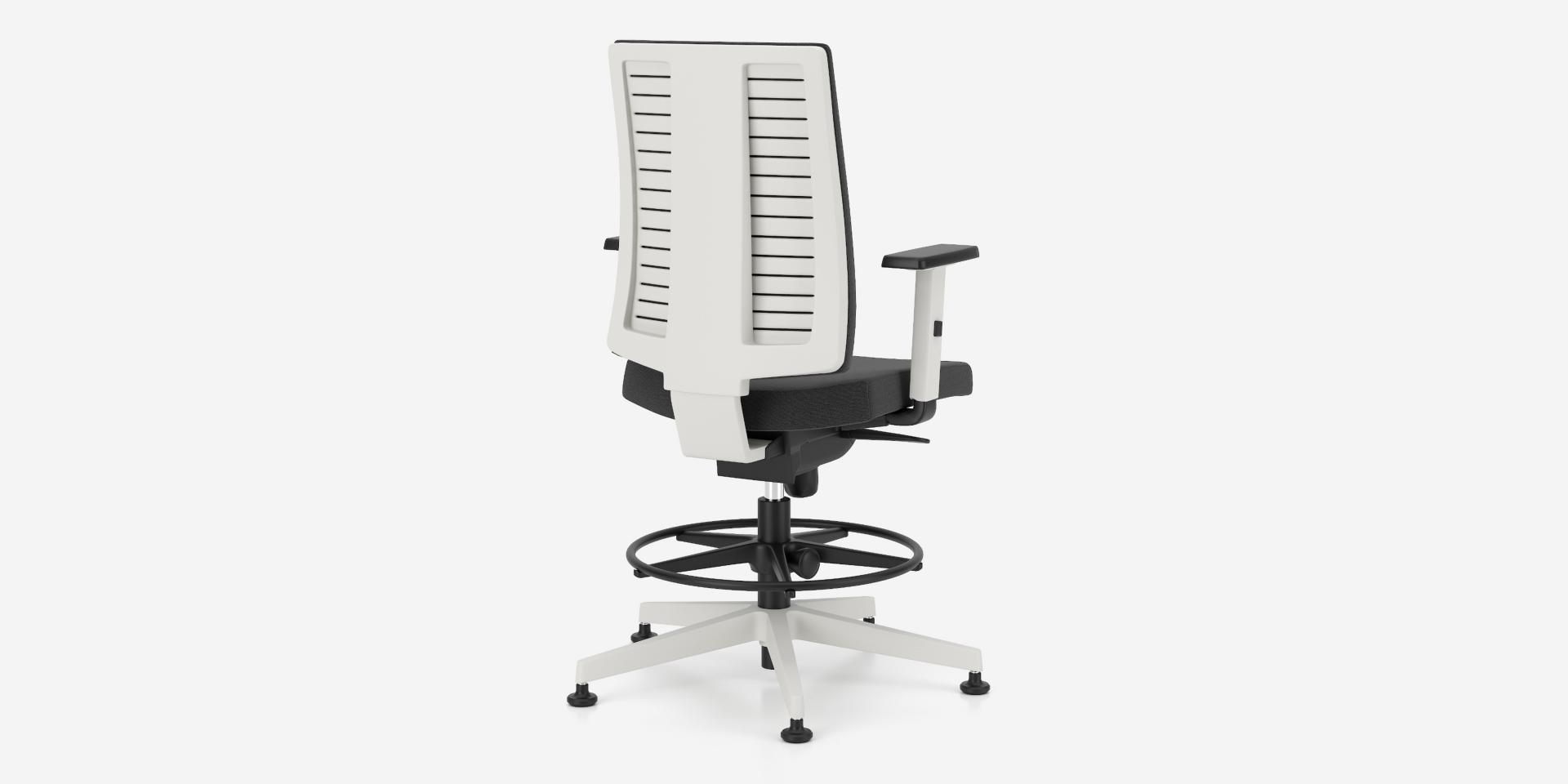

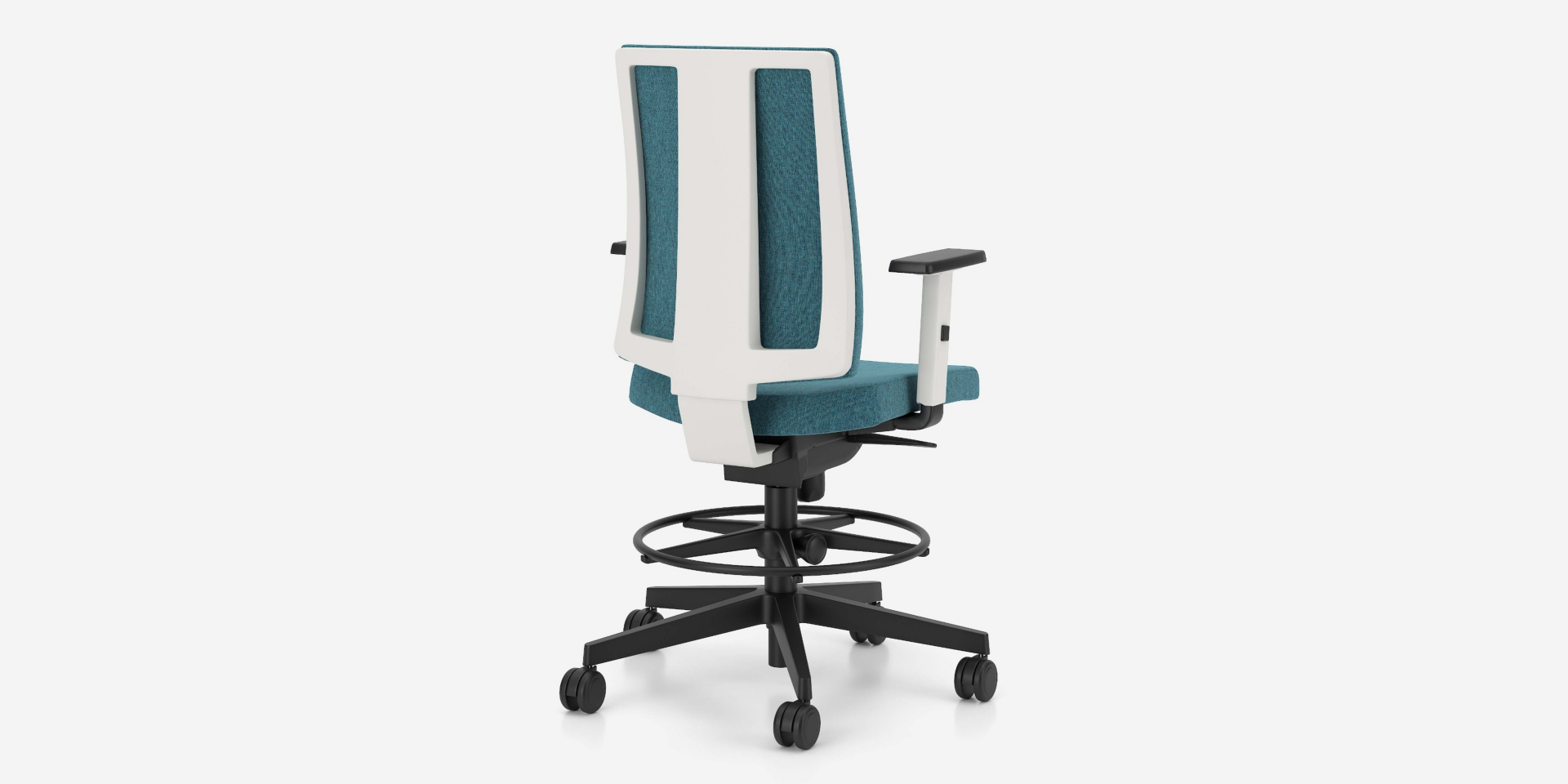

WINDOW: a backrest with uncovered upholstery
DESIGN: Oscar Buffon
Oscar Buffon runs his own design studio in Venice. He is mainly focused on designing furniture for residential houses and offices. He has vast experience in creating unique office chairs using modern materials and technological solutions.

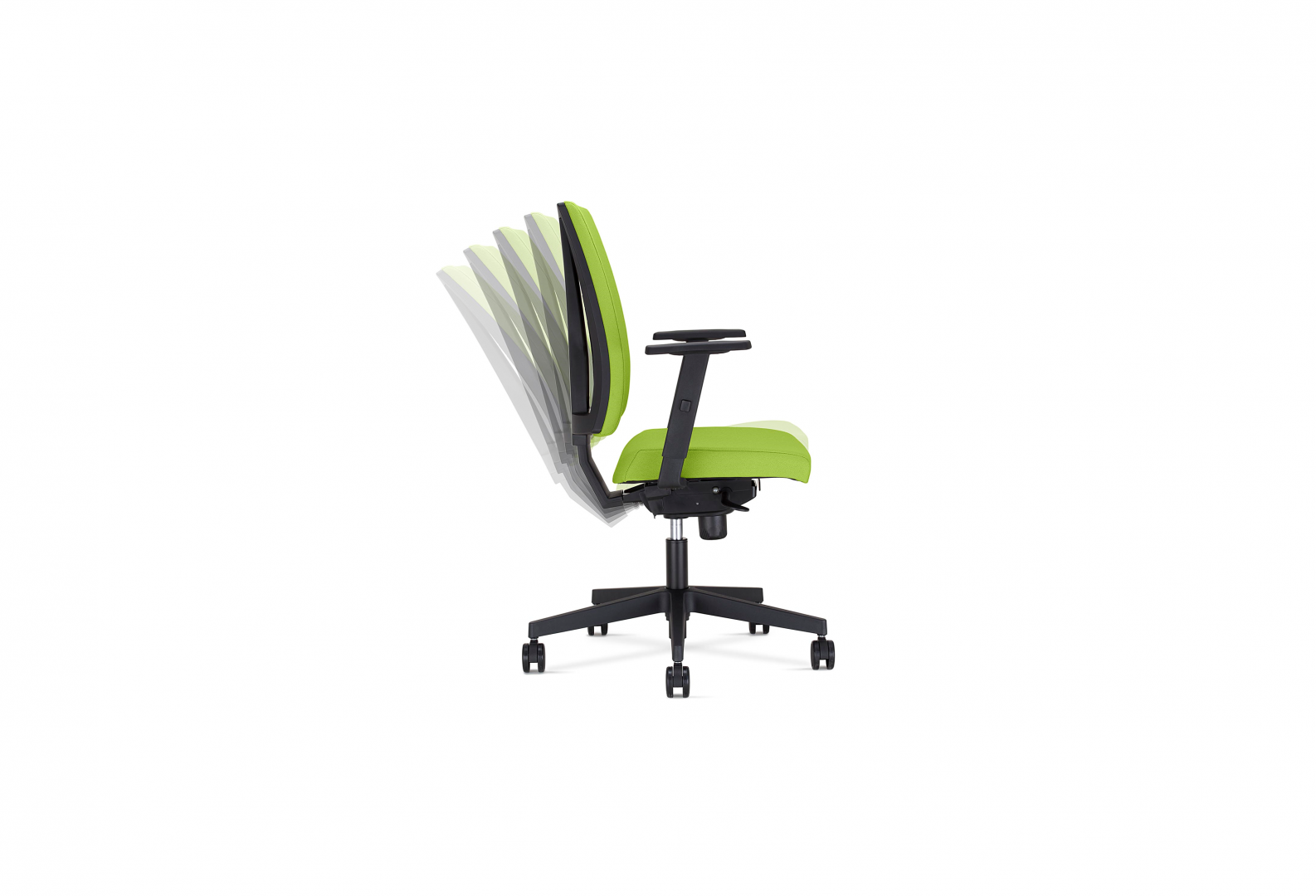

Mechanisms
FS synchronous mechanism – functions:
- free floating possibility – backrest and seat tilt synchronously,
- backrest tilt angle of 33° synchronised with seat tilt angle of 11°,
- possibility of backrest lock in 5 positions,
- adjustable backrest tilt force by means of a bolt,
- adjustable seat depth – 50 mm (additional option),
- Anti-Shock – a feature protecting the user’s back from being hit by the backrest after the lock is released,
- adjustable backrest height – 70 mm,
- smoothly adjustable chair height with a pneumatic lift.
SFB1 synchronous self-weighing mechanism – functions:
- automatic adjustment to the user's weight (range from 50 kg to 110 kg),
- free floating possibility – backrest and seat tilt synchronously,
- backrest tilt angle of 33°,
- maximum seat tilt angle of 4.5°,
- possibility of backrest lock in 5 positions,
- adjustable seat depth – 50 mm (additional option),
- adjustable backrest height – 70 mm,
- smoothly adjustable chair height with a pneumatic lift.
LP11 synchronous mechanism – functions:
- free floating possibility – backrest and seat tilt synchronously,
- backrest tilt angle of 33° synchronised with seat tilt angle of 11°,
- possibility of backrest lock in 5 positions,
- quickly adjustable backrest tilt force by means of a controllable knob placed on the right side of the seat,
- adjustable seat depth – 60 mm, possibility of seat lock in 6 positions (additional option),
- Anti-Shock – a feature protecting the user's back from being hit by the backrest after the lock is released,
- negative seat inclination angle of 3° tilting with the backrest at 6° guarantees the optimal support for the user's back at each tilted position of the chair,
- adjustable backrest height – 70 mm,
- smoothly adjustable chair height with a pneumatic lift.
Backrest
Upholstered backrest – frame is made of plastic (polypropylene), covered with injected foam or optionally with cut foam (GC) with a density of 35 kg/m3, thickness 35 mm.

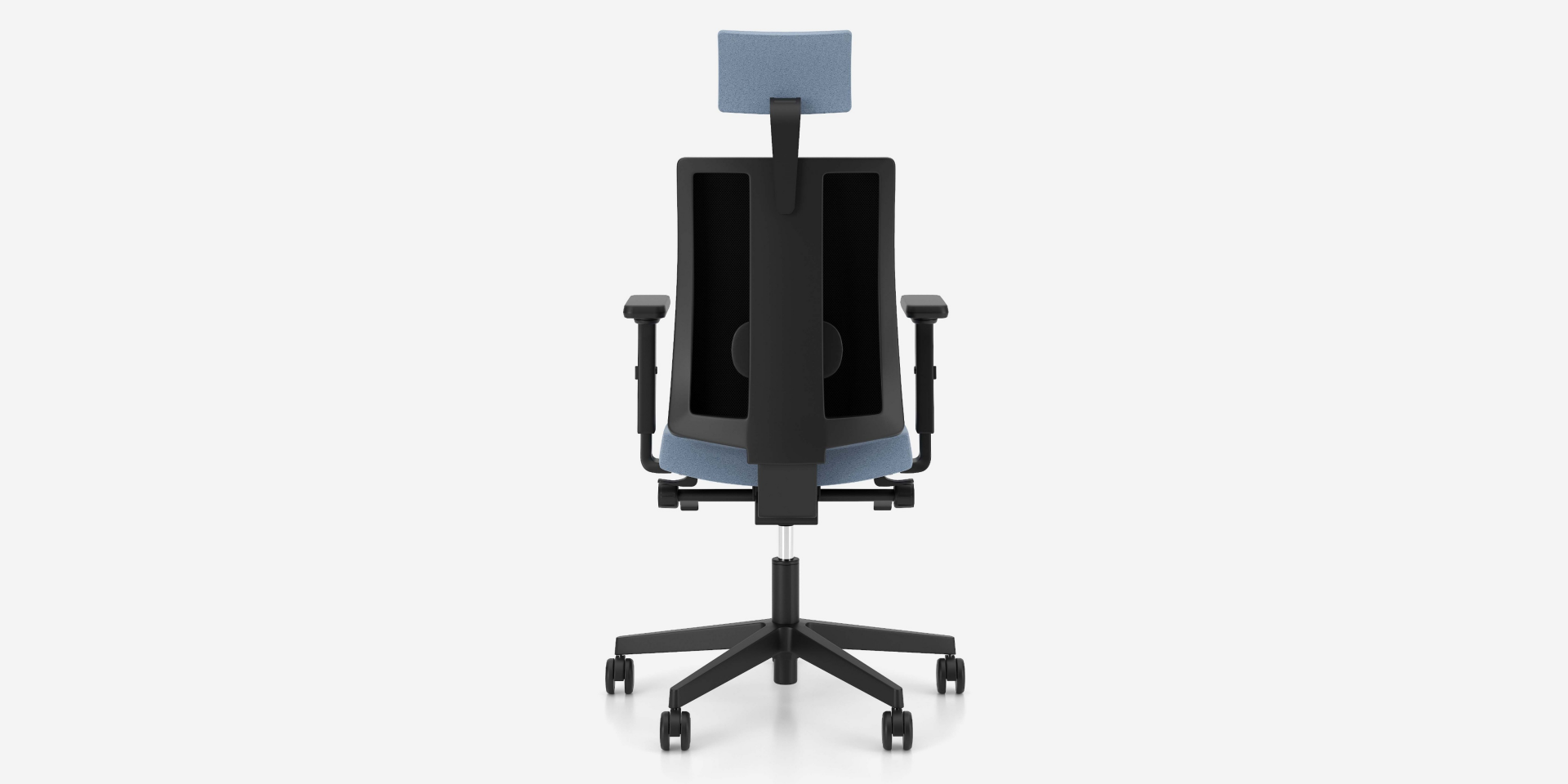

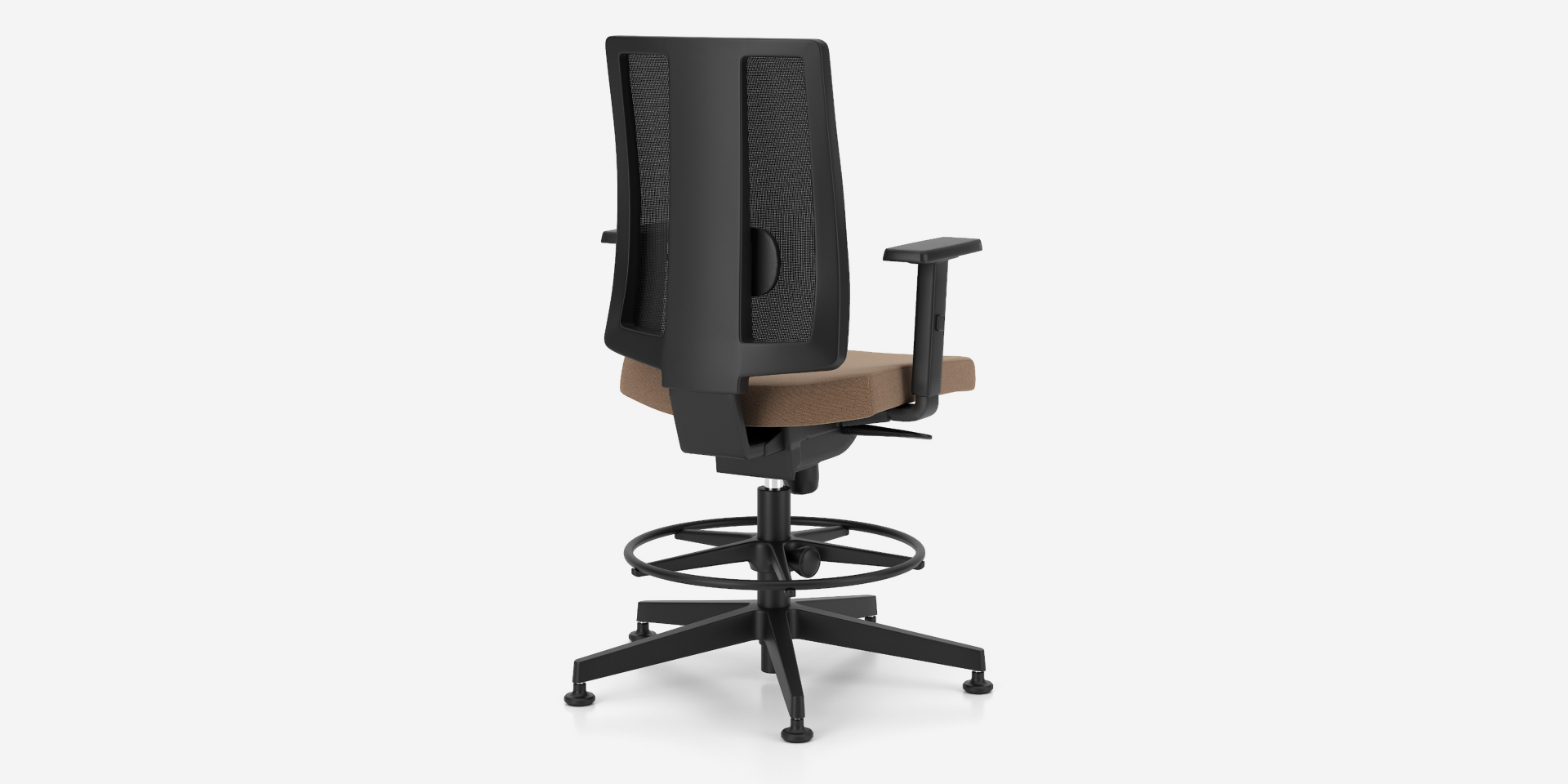

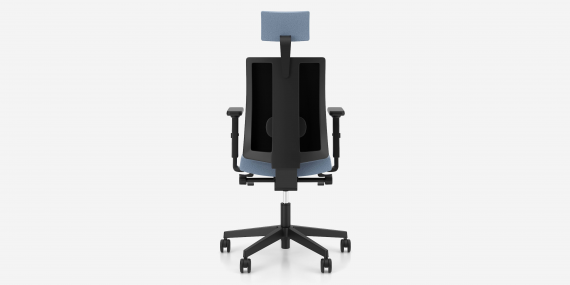

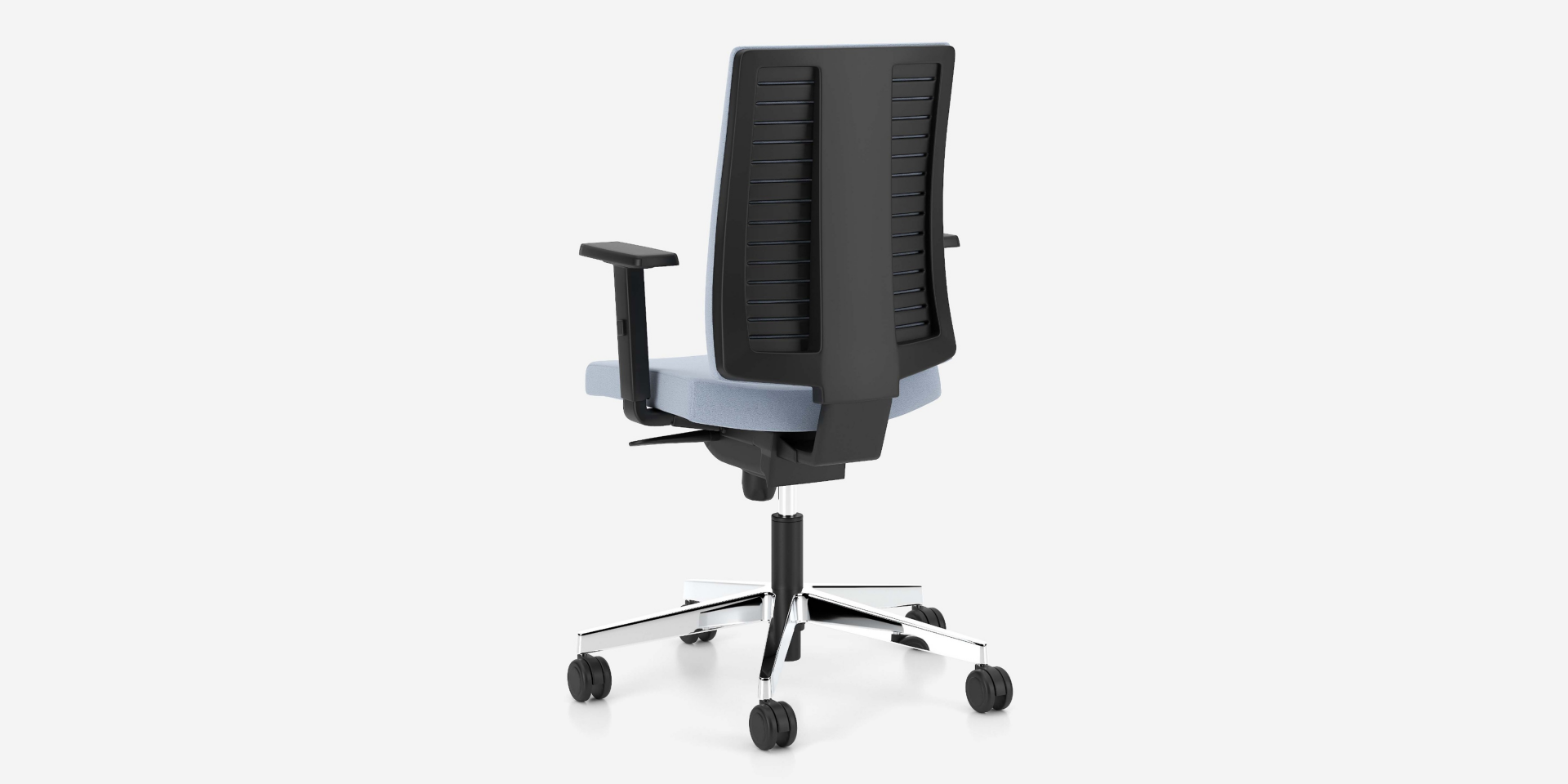

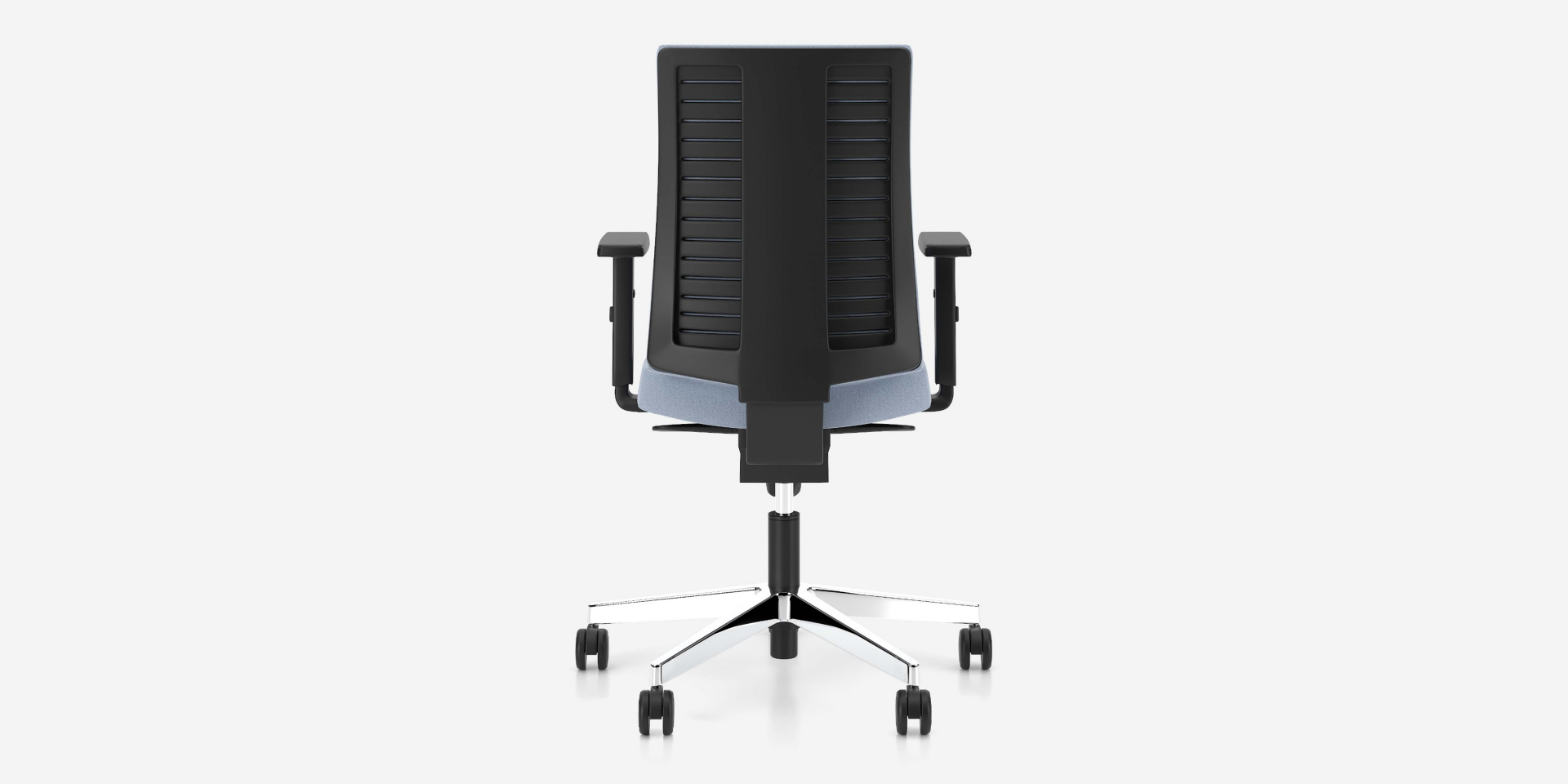

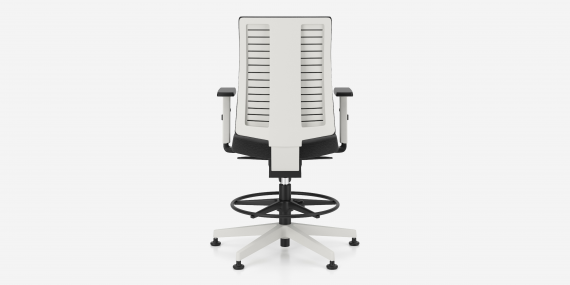

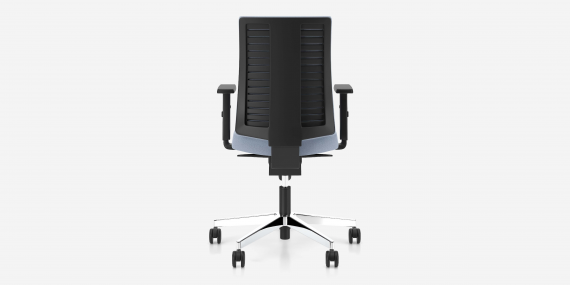

Back of the backrest

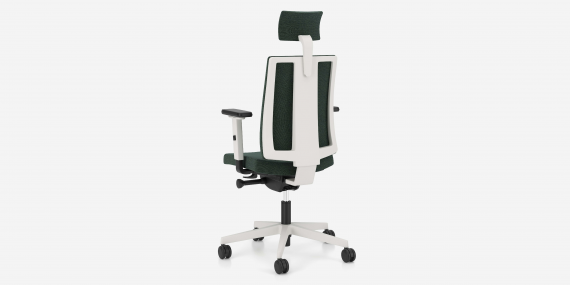

- BASIC version with a plastic shell,

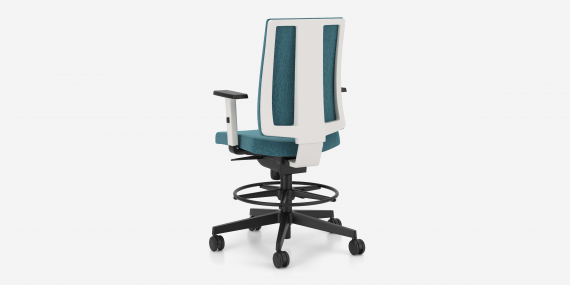

- INSERT version with a plastic shell, through which the coloured upholstery corresponding with the colour of the seat and backrest is visible,
- WINDOW version with a back upholstered in the same colour as the seat and backrest. Backrest connector – made of a flat steel bar, 8 mm thick.
There is a possibility of backrest height adjustment in the range of: 70 mm (13 lock positions).
Seat
frame is made of 10.5 mm thick 7-layer beech plywood, covered with injected foam (PW) 50 mm thick, density 40 kg/m3, or optionally with two layers of cut foam (GC):
top layer: foam with a density of 35 kg/m3, thickness 30 mm (provides the user with the feeling that the seat is soft while sitting down)
bottom layer: foam with a density of 40 kg/m3 with a higher level of flexibility, thickness 20 mm (guarantees that the seat is soft while it is used for a long time; it eliminates the plywood sensing effect)
